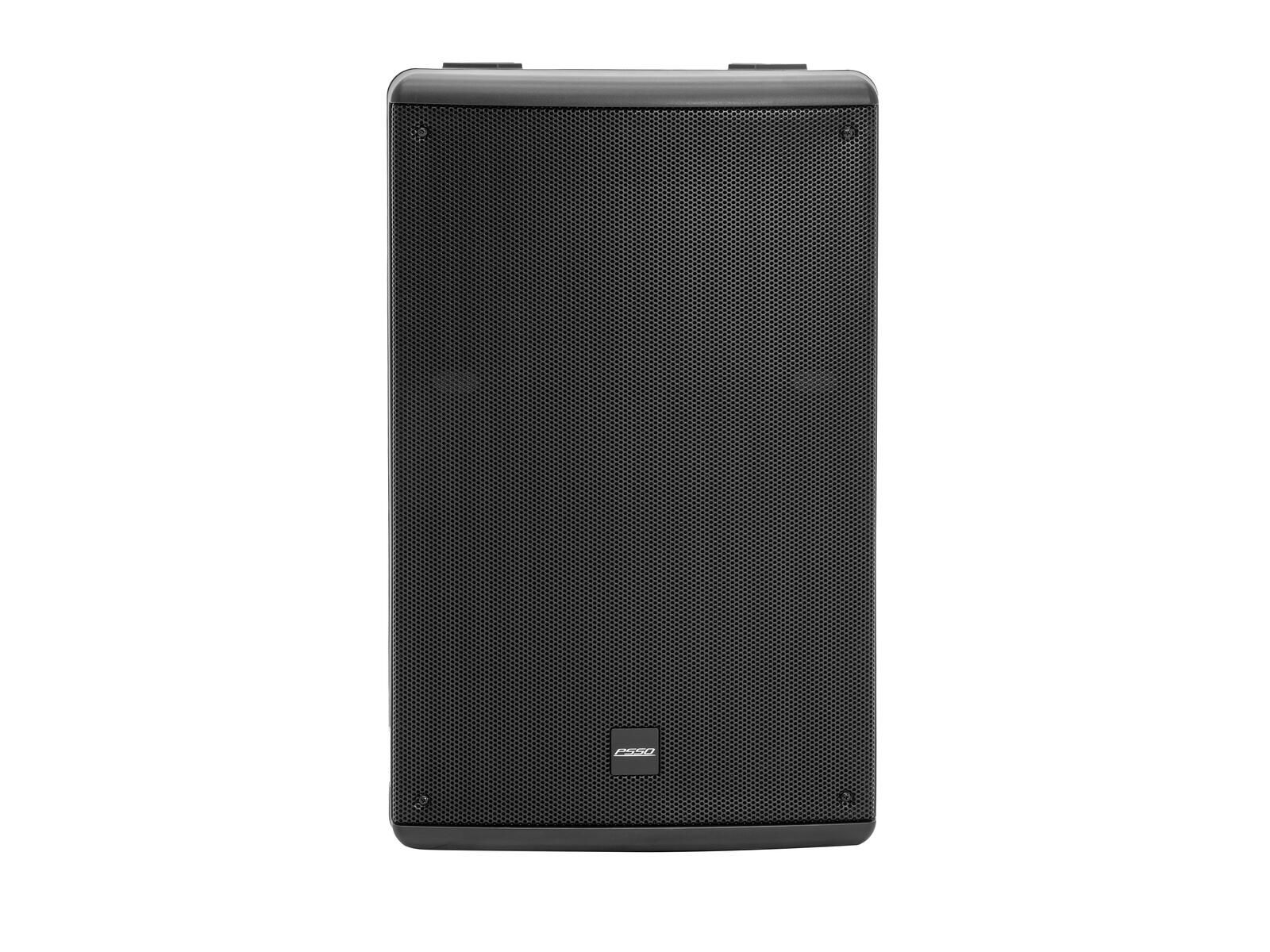

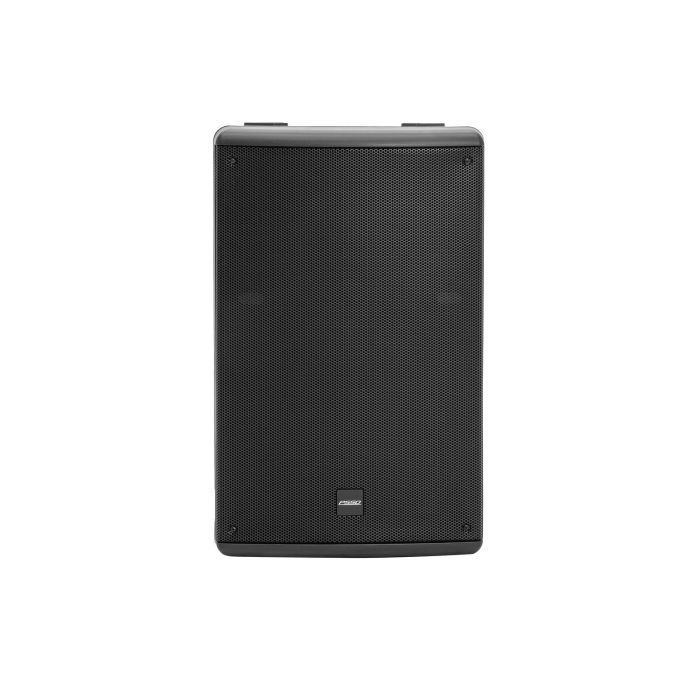

Active speaker with 12" woofer, 1" driver, 700 W RMS,

• Active 12/2 full range system for mobile live and DJ applications
• Versatile setup options with the KX subwoofer and specially tuned presets
• High-quality and sturdy PP cabinet with internal bracing, qualified for suspension
• DSP-controlled biamp amplifier (class D)
• 2-way bass-reflex system
• Line input (XLR/6.3 mm jack) with separate level control
• • Mic/line input (XLR/6.3 mm jack) with separate level control
  • Mixed output for linking further active speaker systems
  • Digital signal processor FIR Filter
  • DSP presets: LIVE; MONITOR; MUSIC; SPEECH; SUB; FLAT
  • The device is cooled by passive convection cooling
  • With rigging points
  • Black metal grille with acoustic foam
  • 3 Rugged carrying handles

  Package contents

  • 1 x top, 1 x power cord, 1 x user manual


  Technical specifications

  Power supply:	230 V AC, 50 Hz
  Power consumption:	1000 W
  IP classification:	IP20
  Protection class:	Protection class I
  Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
  Power output:	1 x P-Con (gray), mounting version
  Power:	700W RMS Peak: 1400W
  Frequency range:	56 - 20000 Hz
  Max. SPL:	135 dB
  DSP:	Digital signal processor FIR Filter
  DSP presets:	LIVE; MONITOR; MUSIC; SPEECH; SUB; FLAT
  Dispersion angle:	90° x 60°
  Cooling:	Passive convection cooling
  Attachment system:	Flange:
  Flying points:	3 x M10 thread
  Circuitry:	Class D Biamp
  Control elements:	Power switch, groundlift selector, Input sensitivity switch, DSP preset switch, level control per channel
  Controls:	Overheat; DC voltage; short-circuit; limiter
  Status LED:	Power, signal, clip

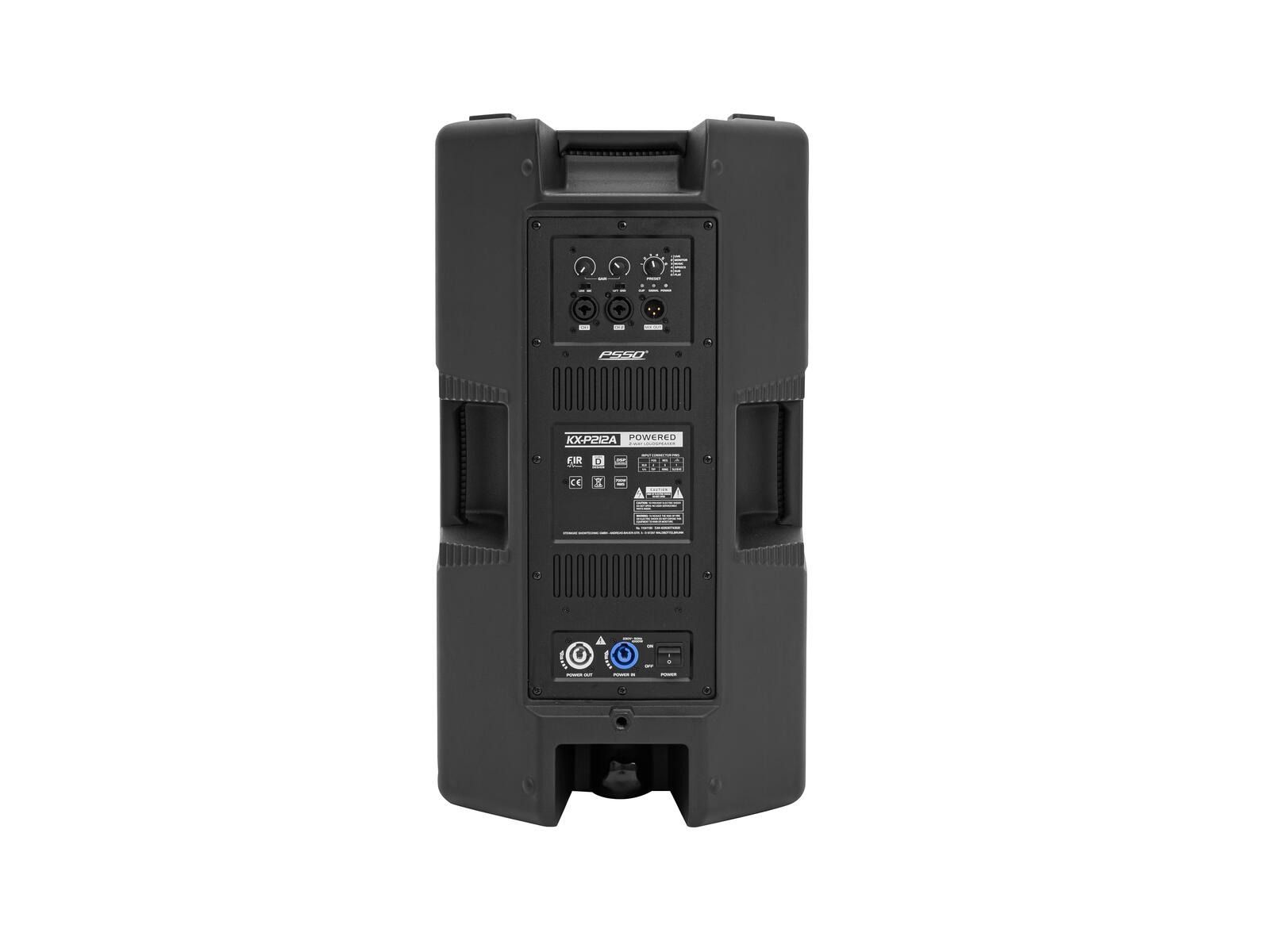

  Connections:	Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR (M) mounting version
  Speaker:	1 x woofer 12" with ferrit magnet Basket material: steel Conematerial: cardboard/paper Voice coil lows 3" 1 x compression tweeter highs 1" with ferrit magnet Voice coil compression tweeter highs 1,5"
  Type of speaker:	Compact cabinet speaker
  Type of construction:	Vented
  Carrying handle:	3 pc/pcs
  Material:	PP polypropylene, powder-coated
  Color:	Black, matte
  Dimensions:	Width: 35 cm Depth: 33,5 cm Height: 63 cm
  Weight:	17,75 kg
  Power cord
  Cable construction:	3 x 0,75 mm² H05VV-F
  Cable length:	2,5 m detachable
