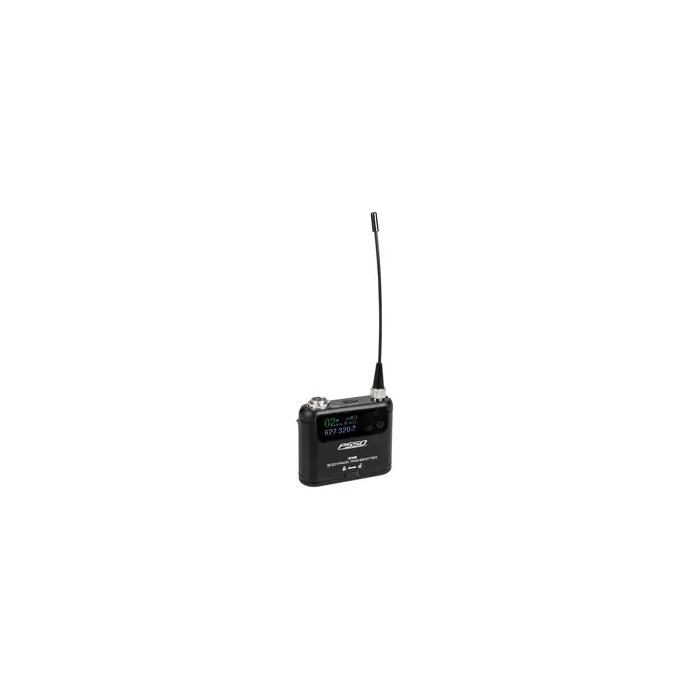

PSSO PXS Mini Bodypack 640-690 MHz
PSSO PXS Mini Bodypack 640-690 MHz
Features
This product is suitable for
PSSO PXS ONE 1-channel True Diversity Receiver 640-690 MHz
Compact bodypack transmitter with battery pack and TFT color display for PXS receivers
- Bodypack transmitter with PLL multifrequency transmitter
- Small lightweight version
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Multicolor TFT display
- Operating range up to 200m with line-of-sight
- Up to 28 transmitters can be operated in parallel without interference
- RF output switchable
- Gain level adjustable
- Lock function for prevents undesired changes to settings
- Powered by a battery/battery pack
- Battery operation up to 10h
- Charge status indicator
Package contents
- 1 x transmitter, 1 x antenna, 1 x battery pack
Â
Technical specifications
| Type: | Pocket transmitter |
| Power connection: | Battery/battery pack built-in Mains input via USB C (W) mounting version |
| Battery pack type: | 1 x lithium ion 3,7 V, 1000 mAh, 3,7 Wh |
| Battery pack: | Battery operation up to 10h Recharging time 3h |
| Battery: | 1 x Mignon (AA) (not included) |
| Frequency range: | 30 - 19000 Hz |
| Range: | Range up to 200m with line-of-sight |
| Frequency band: | UHF 640 - 690 MHz |
| Switching bandwidth: | 50 MHz |
| Parallel mode: | Max. 28 transmitter |
| RF power output: | 20 mW (LO); 30 mW (HI) |
| Housing color: | Black |
| Display type: | Multicolor TFT display |
| Display: | Channel , frequency , charge status indicator , Mute |
| Control elements: | Menu, navigation keys |
| Connections: | Input: microphone via Mini XLR (M) 4-pin mounting version |
| Switch: | On/off switch |
| Material: | Metal |
| Dimensions: | Width: 6,6 cm Depth: 2,5 cm Height: 15,5 cm |
| Weight: | 0,12 kg |
