Name: PSSO QDA-6000 MK2 4-channel Amplifier
Brand: PSSO
SKU: st10451689
Price: 812.21 EUR
Availability: InStock

€ 812,21 € 671,25

SKU

st10451689

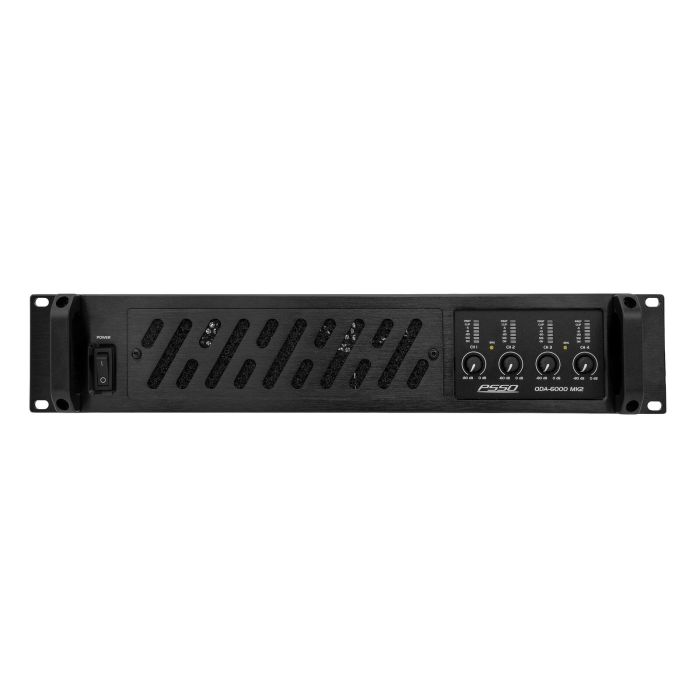

PSSO QDA-6000 MK2 4-channel Amplifier

PSSO QDA-6000 MK2 4-channel Amplifier

4-channel PA amplifier with class D circuitry
Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
3 operating modes can be selected (stereo, parallel or bridged)
Level control per channel
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
(19") 48.3 cm rack installation 2 U
Highly efficient air flow from front to rear
The device is cooled by temperature-controlled fan

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	1200 W 1/8 power
Protection class:	Protection class I
Output power:	4 x 1500 W RMS (4 ohms) 4 x 1000 W RMS (8 ohms) 2 x 3000 W RMS bridged (8 ohms)
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug included
Cable construction:	3 x 1.5 mm² H05VV-F
Frequency range:	20 - 20000 Hz ±
S/N ratio:	>100 dB
THD:	<0.2 % at 1 kHz
Cooling:	4 x temperature-controlled fan , air flow from front to rear
Gain:	32 dB 36 dB 41 dB
Housing color:	Black matte
Circuitry:	Class D
Slew rate:	>16 V/µs
Damping factor:	>400
Crosstalk:	>70 dB
Control elements:	Power switch, level control per channel, Input sensitivity switch, mode switch (stereo/parallel/bridged)
Controls:	DC voltage; short-circuit; limiter; softstart; overheat; VHF; overload
Status LED:	Power, signal, level meter, clip, protect; bridged
Connections:	Input: line via 4 x 3-pin XLR (F) mounting version Output: line via 4 x 3-pin XLR (M) mounting version Output: speaker via 4 x speaker built-in socket (F)
Input sensitivity:	0.775 V; 1.4 V; 2.2 V , switchable
Max. level:	Input: +20 dBu Input: +9 V
Housing design:	(19") 48.3 cm rack installation 2 U
Mounting depth:	39.8 cm
Dimensions:	Width: 48.3 cm Depth: 43.5 cm Height: 8.9 cm
Weight:	9.15 kg
Amplifier
Weight:	9.05 kg
Power cord
Weight:	0.26 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397747188	10,80 kg
