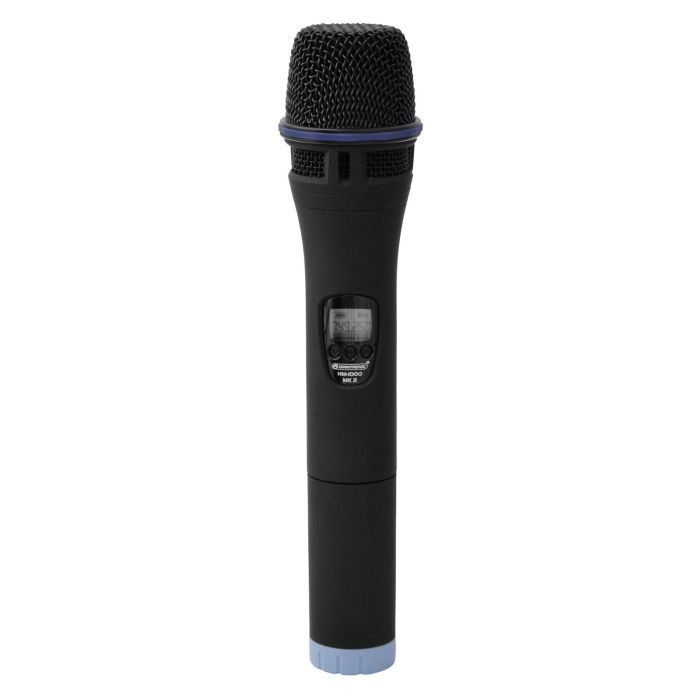

RELACART H-31 Microphone for HR-31S system

Hand-held microphone with PLL multifrequency transmitter

• Dynamic hand-held microphone with UHF pilot tone technology (PLL)
• Ergonomic aluminum alloy housing, applicable for touring
• Matches receiver HR-31S
• 2 different frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Infrared interface for easy and error-free synchronization with the receiver via infrared signal
• Operation range approx. 80 meters
• OLED display for battery status, frequency and channel
• Mute function
• RF output power Hi/Low adjustable
• Directly compatible with Shure’s SM58 capsule
• Long battery life for up to 15 hours continuous operation
• Operation via 2 x 1.5 V battery (type AA), not included
• License-free and approved in large parts of the EU (please check on a country-by-country basis)

Type:DynamicDirectivity pattern:CardioidCarrier frequency:UHF 731-790 MHz and 823-832 MHzTransmitting frequencies:29210 frequency banks with up to 25 preset frequencies each +8 frequency banks with up to 7 preset frequencies eachSwitching bandwidth:68 MHzDeviation:±45 kHzModulation:FMCoverage:80 m (with line-of-sight)Power supply:2 x 1.5 V battery (type AA)Current consumption:approx. 90 mABattery life:approx. 15 hoursDimensions:51 x 256 mmWeight:215 g
