€ 112,42
€ 92,91
?
SKU
st13055181

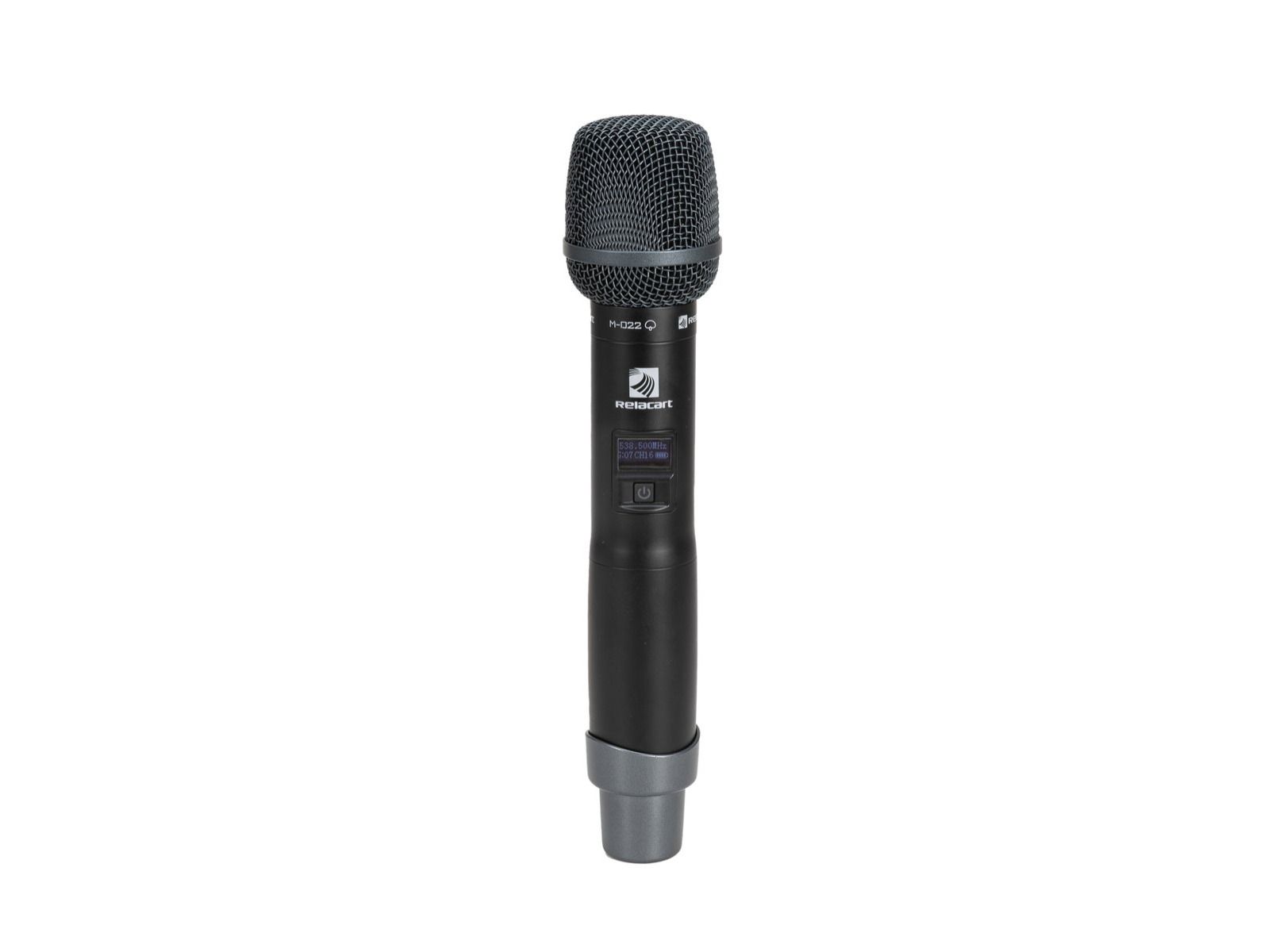

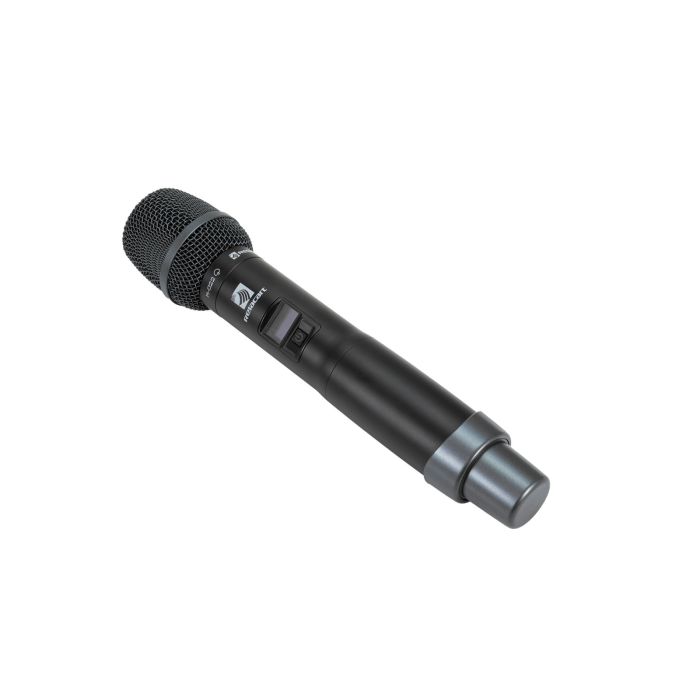

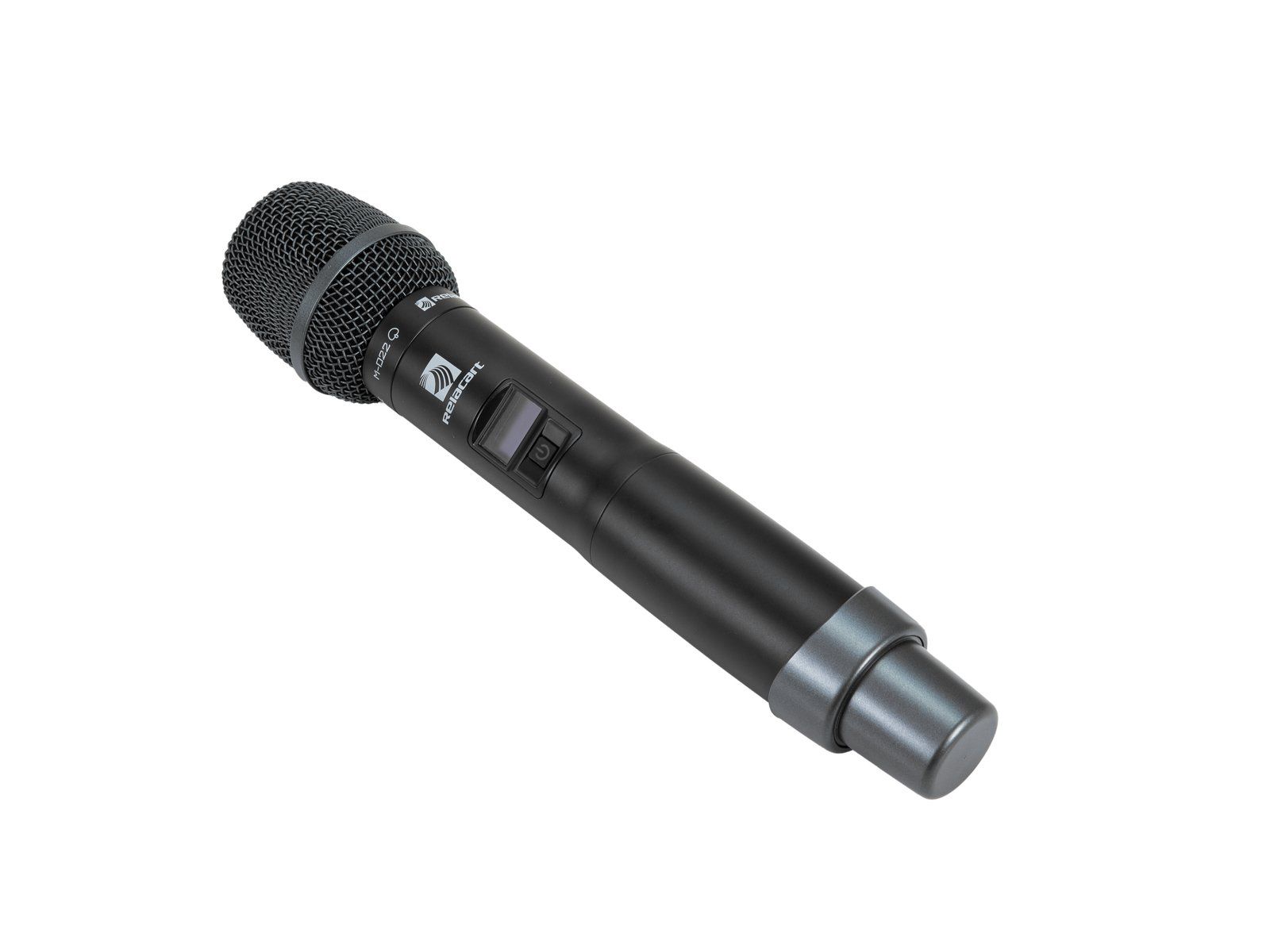

RELACART UH-222D Microphone 522-554 MHz Hand-held microphone with PLL multifrequency transmitter
RELACART UH-222D Microphone 522-554 MHz Hand-held microphone with PLL multifrequency transmitter
Features
Hand-held microphone with PLL multifrequency transmitter
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Capsule M-022
- Directly compatible with Shure's SM58 capsule
- Polar pattern: Super cardoid
- Operating range up to 80m
- OLED display
- Charge status indicator
- Up to 12 transmitters can be operated in parallel without interference
Package contents
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
Technical specifications
| Type: | Hand-held transmitter |
| Power supply: | 3 V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Super cardoid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 120 - 16000 Hz |
| Sensitivity: | -53 dB |
| Max. SPL: | 145 dB |
| Range: | Range up to 80m |
| Frequency band: | UHF 522 - 554 MHz |
| Switching bandwidth: | 32 MHz |
| Parallel mode: | Max. 12 transmitter |
| RF power output: | 10 mW (LO); 30 (HI) |
| Modulation: | FM |
| Frequency selection: | 151 switchable frequencies In 10 groups with up to 18 preset frequencies each |
| Display type: | OLED display |
| Display: | Charge status indicator , frequency , channel |
| Control elements: | Gain-switch (high-mid-low), Transmitter power switch (high-low) |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Dimensions: | Length: 26 cm Diameter: Ø 5,4 cm |
| Weight: | 280 g |
