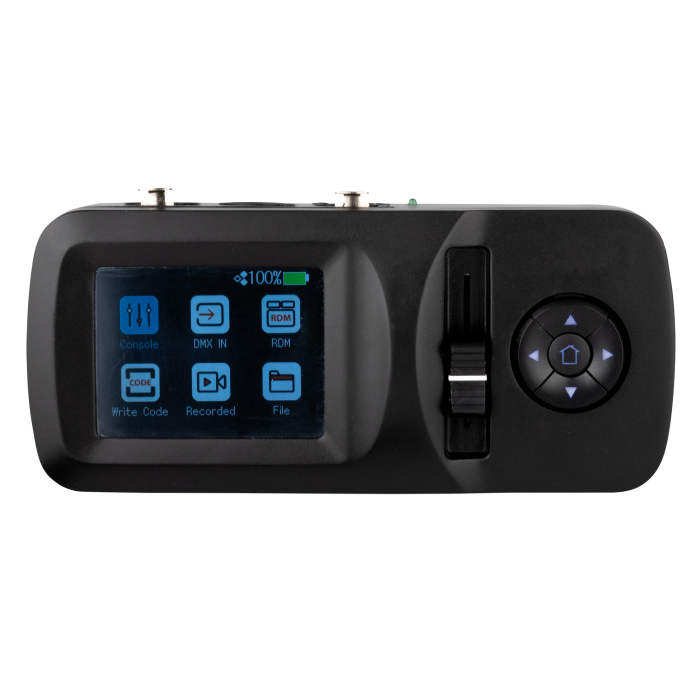

Showtec Assistant CRMX W-DMX, DMX, RDM, Art-Net and sACN tester
Showtec Assistant CRMX W-DMX, DMX, RDM, Art-Net and sACN tester
For W-DMX, CRMX, DMX, RDM, Art-Net and sACN testing
Record and play back DMX signals with a removable SD card
Portable, battery-powered operation
User-friendly control with touch screen, fader, and buttons
The Showtec Assistant CRMX is a multifunctional tool for checking W-DMX, CRMX, DMX, RDM, Art-Net and sACN signals.
It allows you to both receive and transmit (W-)DMX signals, making it ideal for testing your DMX, Art-Net, sACN networks, while the integrated LumenRadio transceiver allows you to check your Wireless DMX network - all with one robust device.
You can also record and play back DMX signals using a removable SD card.
Additionally, the Showtec Assistant CRMX enables you to check RDM parameters of your fixtures.
Navigating through the menu and parameters is effortless thanks to the capacitive touch screen.
Navigating through the menu and parameters is effortless thanks to the capacitive touch screen.
Alternatively, you can use the fader and buttons for control.
The internal Li-ion battery, when fully charged, lasts up to 16 hours and can be recharged via the USB-C port with a 5V power supply.
Battery
Battery Type Lithium ion
Battery Voltage 3.7 V
Capacity 7.8 Ah
Battery Power 28.86 Wh
Runtime Average 16 h
Battery Lifetime 500 cycles
Server Specifications
Memory Type SD-Card
Electrical Specifications and Connections
Power Supply 5 V DC
Power over Ethernet (PoE) No
Power Consumption 5 W
Power Connector In USB-C
DMX Connector XLR 5P In/Out
Mechanical Specifications
Length (mm) 186 mm (7.323″)
Width (mm) 82 mm (3.228″)
Height (mm) 56 mm (2.205″)
Weight 0.5 kg (1.102 lb)
IP Rating IP20 (indoor use only)
Housing ABS
Colour Black
Thermal Specifications
Maximum Ambient Temperature 50 °C (122 °F)
Minimum Operating Temperature -10 °C (14 °F)
Control and Programming Control Mode Art-Net, DMX, RDM, sACN
Protocols Art-Net, CRMX Classic, DMX, W-DMX G3 G4 G4S G5, RDM
Display LCD, Tocch
Universes 1
