€ 962,00
€ 795,04
?
SKU
42664

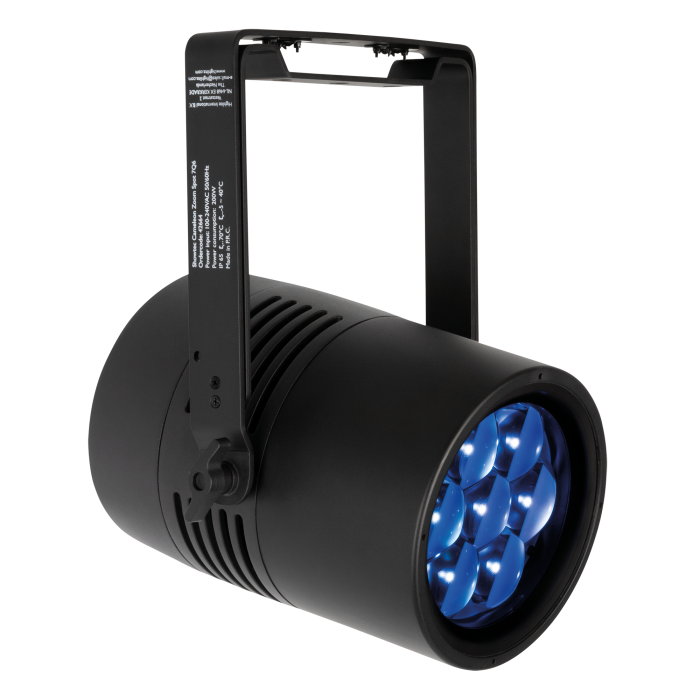

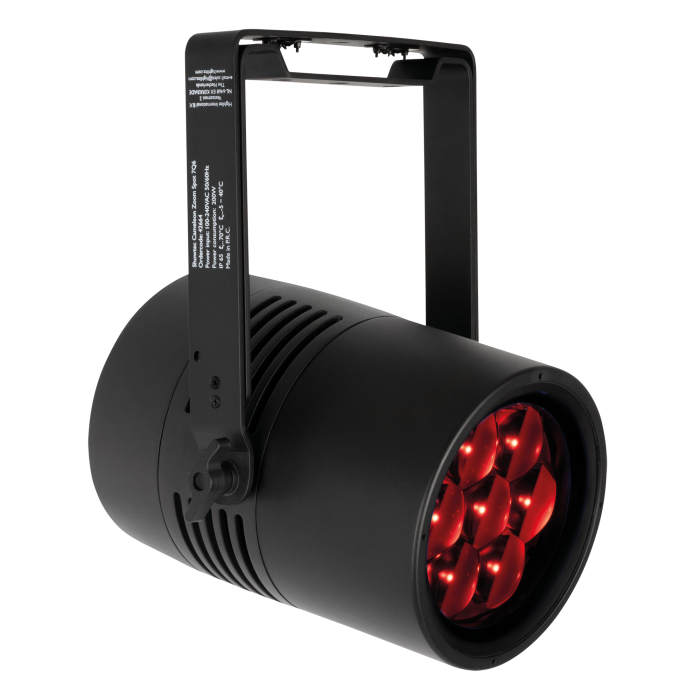

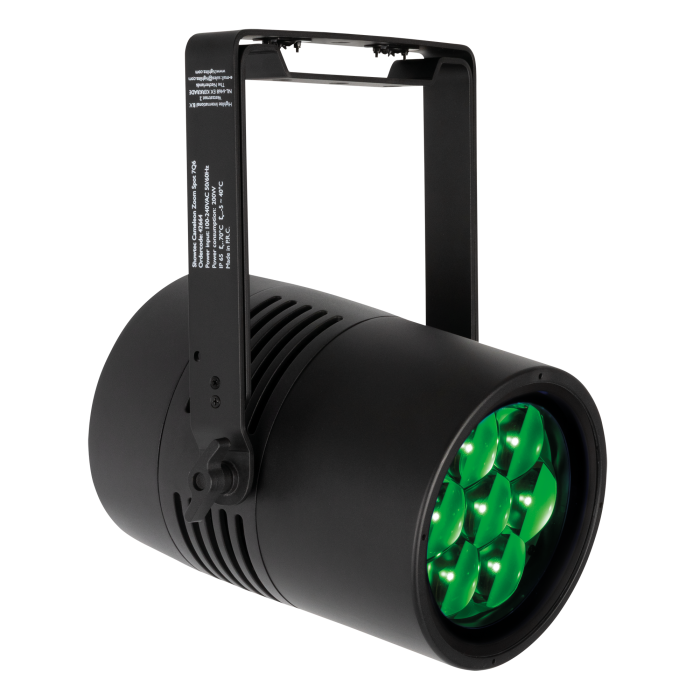

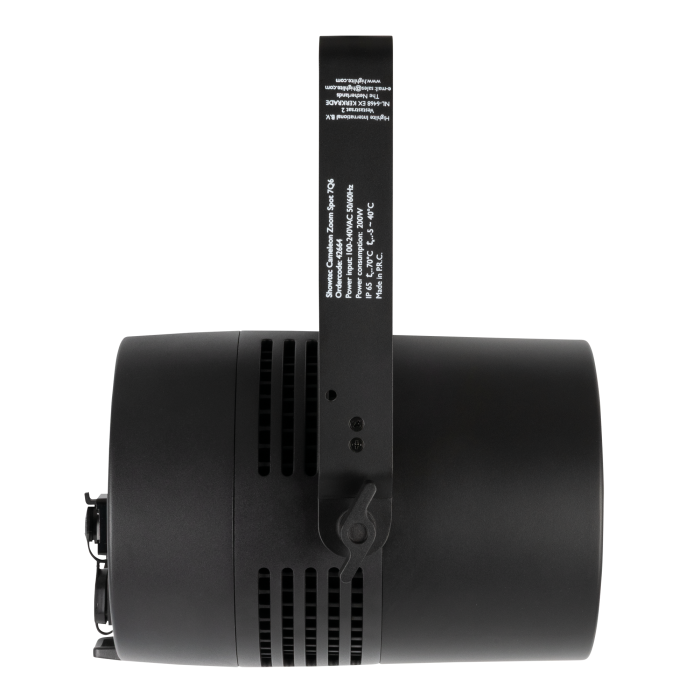

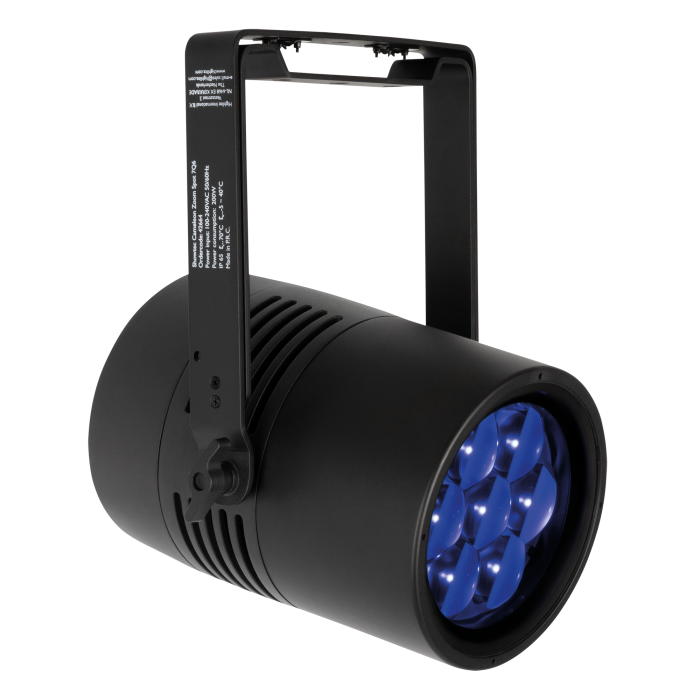

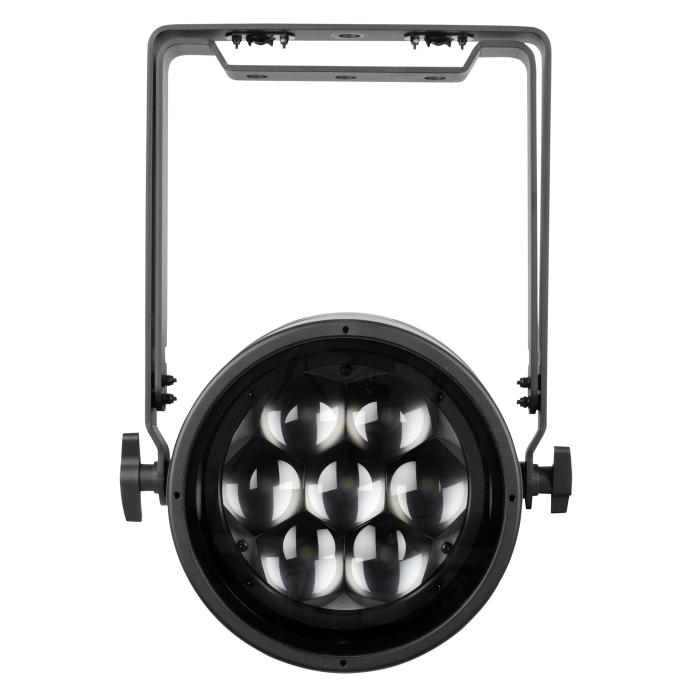

Showtec Cameleon Zoom Spot 7Q6 Tour 7x 50 W RGBWA-UV Spot
Showtec Cameleon Zoom Spot 7Q6 Tour 7x 50 W RGBWA-UV Spot
7x 50 W RGBWA-UV LED Spot
IP65 rated
Motorised zoom range 6°–45°
Dimmer and strobe function
DMX/RDM, Manual, Auto and Master/Slave control
The Cameleon Zoom Spot 7Q6 Tour is an LED Spot with seven 50-watt RGBWA-UV LEDs. It has a motorised zoom range from 6° to 45° and features 0–100 % dimmer control and 0–20 Hz strobe effects.
With preprogrammed colours, built-in colour macros and 4 selectable dimming curves, it's easy to use.
Adjustable PWM frequencies allow flicker-free filming too.
The fixture can be controlled with DMX (incl. RDM) or operated in Auto or Master/Slave modes.

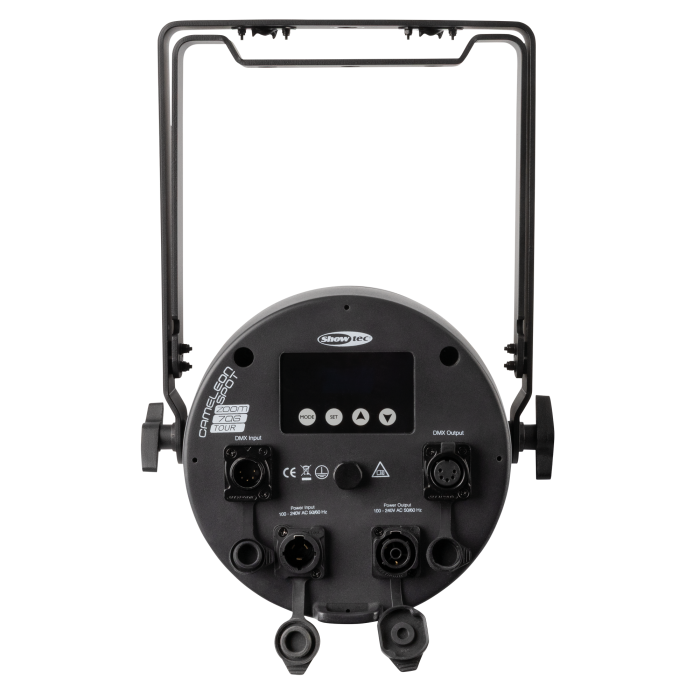

Manual control is also possible using the OLED display and touch buttons.
The fixture, the 3-pin XLR and the Seetronic Power Pro True connectors are all IP65 rated, making the Cameleon Zoom Spot 7Q6 Tour suitable for outdoor use too.
Specifications
Source
Light Source Type LED
Light Source Quantity 7
Light Source Power 50 W
LED Colour Type RGBWAUV
Luminous Flux (Total) 3285 lm
Optical
Zoom Type Motorised
Zoom Minimum 6 °
Zoom Maximum 34 °
Control and Programming
Control Mode Auto, DMX, Manual, Master Slave
DMX Channels 7, 10, 13, 15, 21
Protocols DMX, RDM
Display OLED
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 220 W
Power Connector In Power Pro True
Power Connector Out Power Pro True
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 252 mm (9.921″)
Width (mm) 184 mm (7.244″)
Height (mm) 264 mm (10.394″)
Weight 8.4 kg (18.519 lb)
IP Rating IP65
Housing Aluminium die-cast
Colour Black
Product Properties
Cooling Convection
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Operating Temperature -5 °C (23 °F)
Product Compliance
Energy efficiency class T/B/D
Included Items
Included Cables Power Pro True Cable
Included Rigging Quick-Lock Bracket
