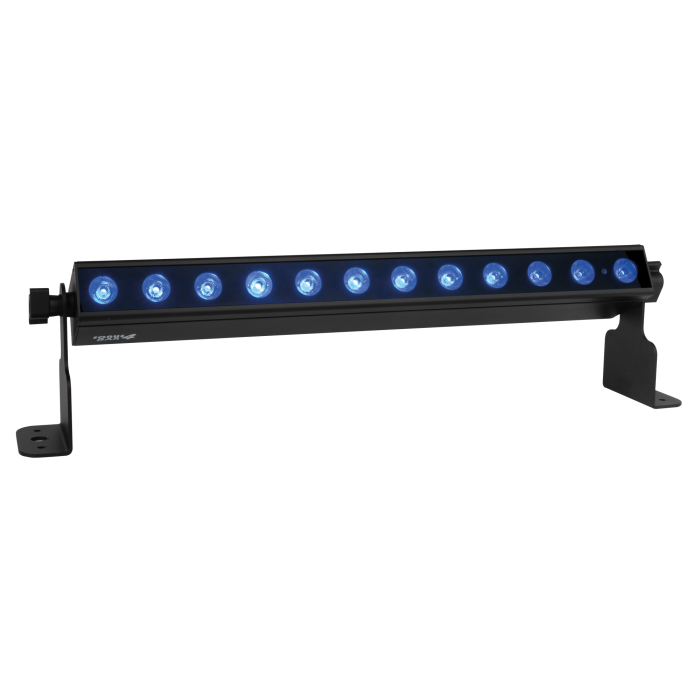

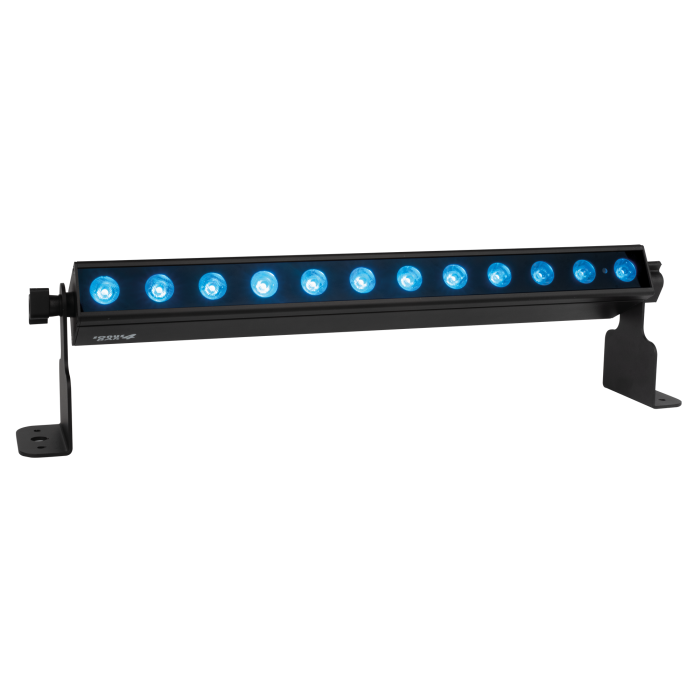

Showtec Sonus Bar 4 Indoor RGBW light bar
Showtec Sonus Bar 4 Indoor RGBW light bar
12 RGBW LEDs
Up to 4 controllable sections
DMX/RDM, built-in program, sound, manual and master/slave modes
Silent convection cooling
The Showtec Sonus Bar 4 is a light bar with 12 RGBW LEDs of 2 W each.
The LEDs can be controlled in up to 4 sections via up to 22 DMX channels.
It also features a high-quality sound-controlled mode, which is useful in many occasions and for professionals and beginners alike.
It can also work in stand-alone mode with built-in programs, manual settings, in master/slave mode and it supports RDM.
The Showtec Sonus Bar 4 is convection-cooled, so it is completely silent in operation.
Source
Light Source TypeLED
Light Source Quantity 12
Light Source Power 2 W
LED Colour Type RGBW
Refresh Rate 1000 Hz
Luminous Flux (Total) 446 lm
Optical
Beam Angle (Horizontal) 12.1 °
Beam Angle (Vertical) 11.4 °
Control and Programming
Control Mode Built-in Program, DMX, Manual, Master Slave, Remote, RDM, Sound
DMX Channels 4, 6, 10, 16, 18, 22
Protocols DMX, RDM
Display 7-segment
Dynamic Effects
Dimmer 0-100 %
Strobe 0-15 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 15 W
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 590 mm (23.228″)
Width (mm) 80 mm (3.15″)
Height (mm) 148 mm (5.827″)
Weight 1.9 kg (4.189 lb)
IP Rating
IP20 (indoor use only)
Housing Aluminium
Colour Black
Product Properties
Cooling Convection
Rigging
Mounting Options Clamp
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Operating Temperature 5 °C (23 °F)
Product Compliance
Energy efficiency class T/B/D
Included Items
Included CablesPower Pro Cable
