€ 759,00
?
SKU
42654

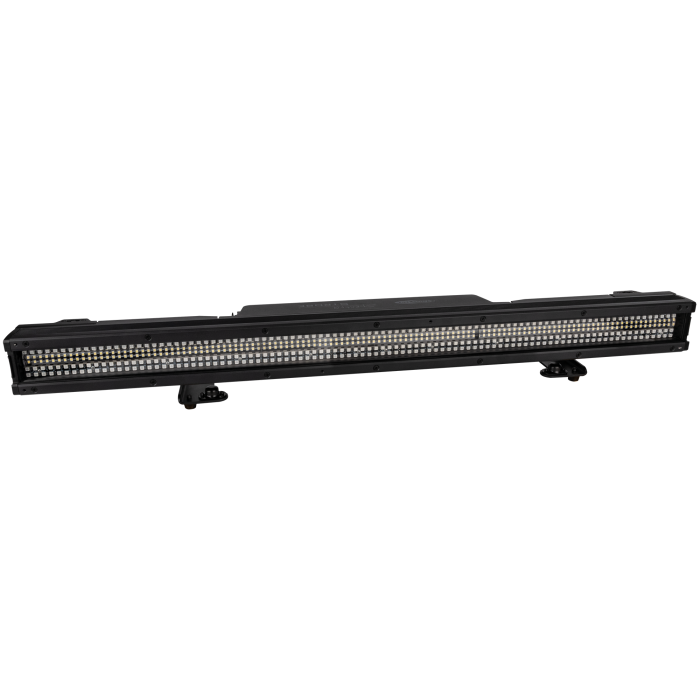

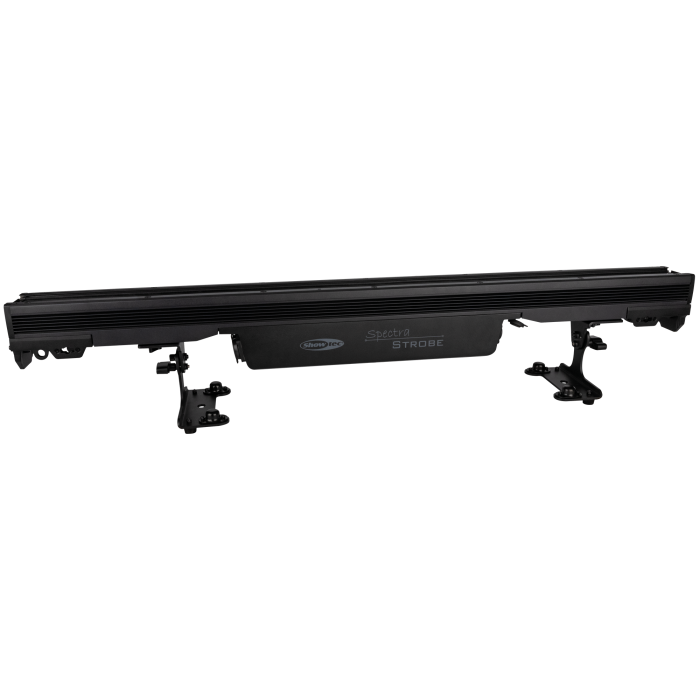

Showtec Spectra Strobe 360x 1W white and 384x 0.5W RGB LED bar - IP65
Showtec Spectra Strobe 360x 1W white and 384x 0.5W RGB LED bar - IP65
360x 1W white LED, 384x RGB LED
IP65-rated for temporary outdoor use
DMX (RDM), stand-alone and master/slave modes
Optional beam shapers (15°, 25°, 10° x 40°) and barndoors

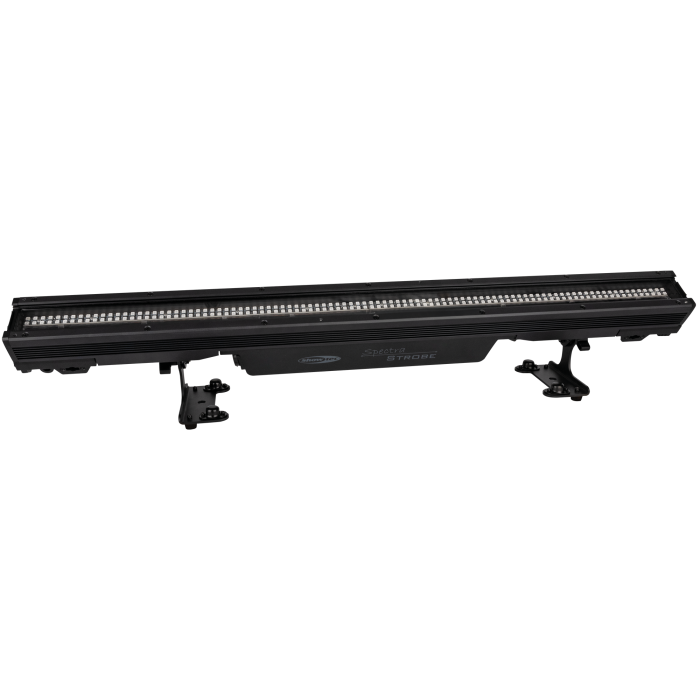

The Showtec Spectra Strobe is a 1-metre-long, IP65-rated strobe bar for temporary outdoor use.

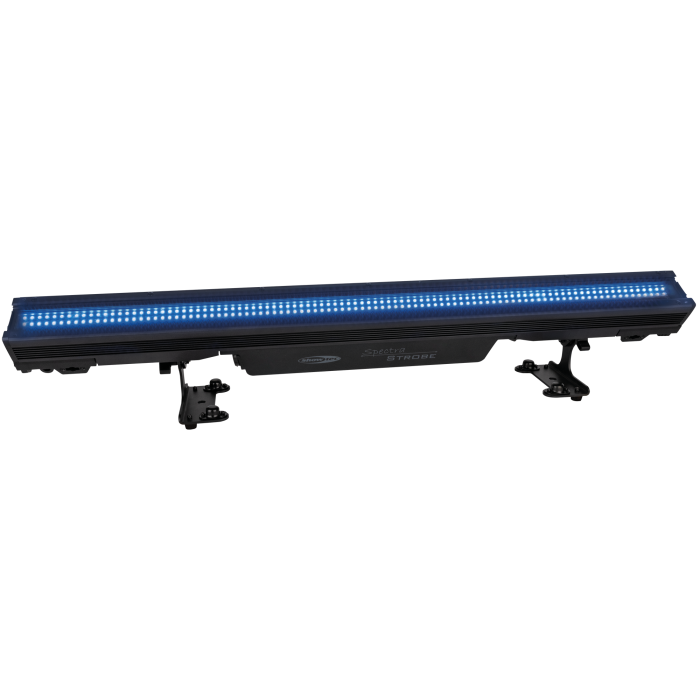

It has 360 1W white LEDs and 384 0.5W RGB LEDs to create powerful and colourful flash and wash effects.
It allows you to control 12 sections of white LEDs and 24 sections of RGB LEDs via DMX. The LED bar has a wide beam angle.
The optionally available beam shapers enable you to change the beam angle to 15°, 20° or 10° x 40°.
The Spectra Strobe runs stand-alone with multiple built-in presets and effects, in master/slave mode and in 3-, 9-, 21-, 35-, 49- and 91-channel DMX mode with RDM support.

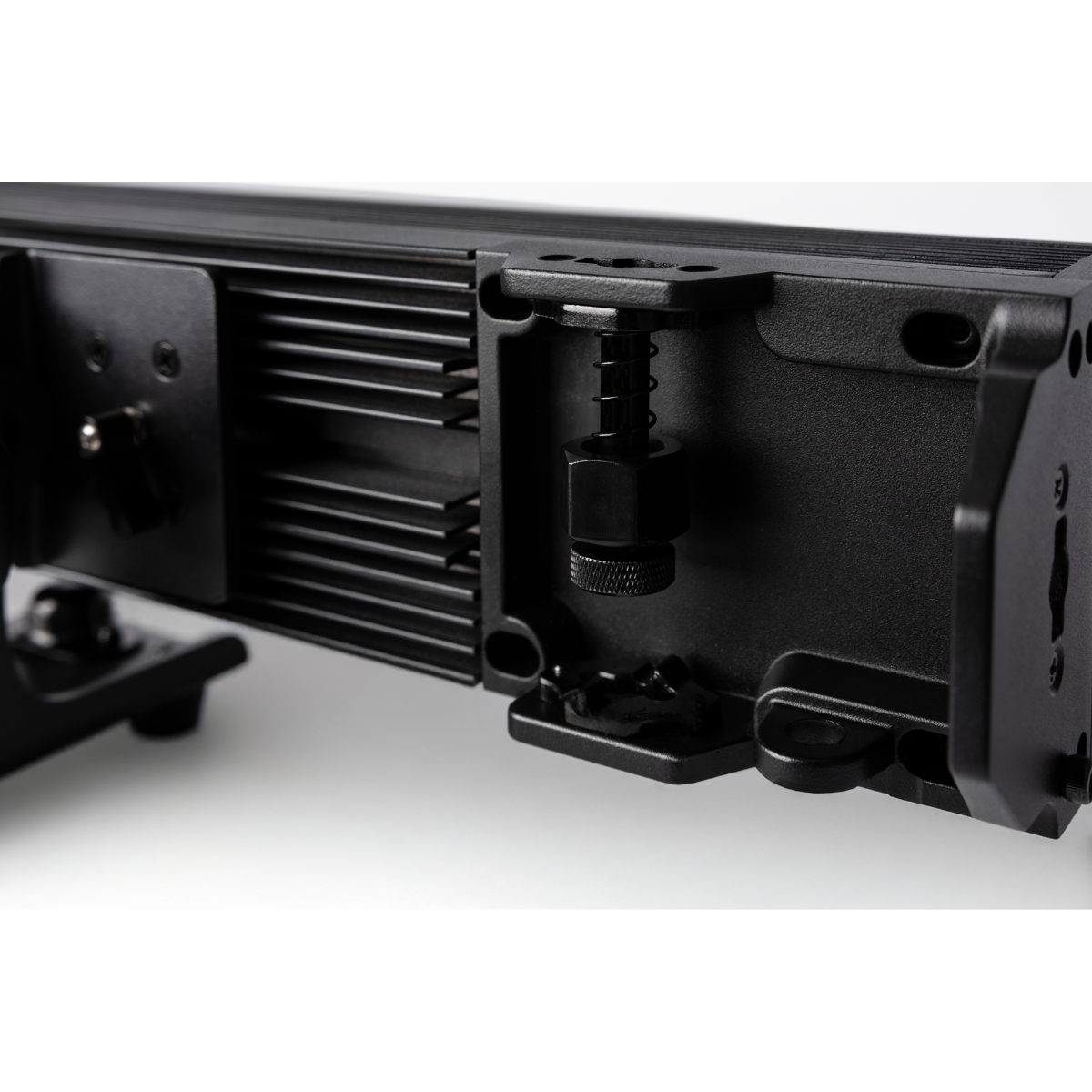

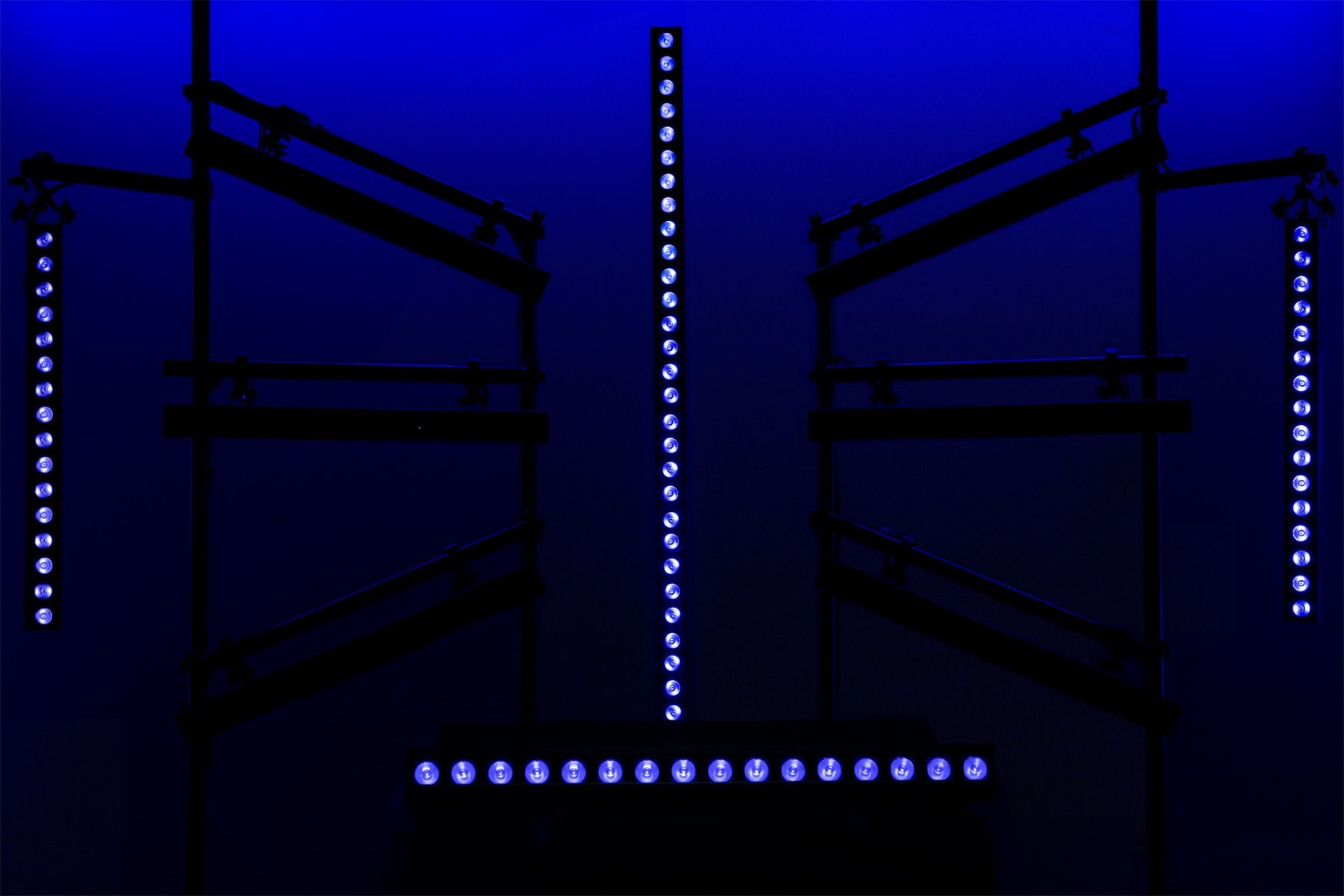

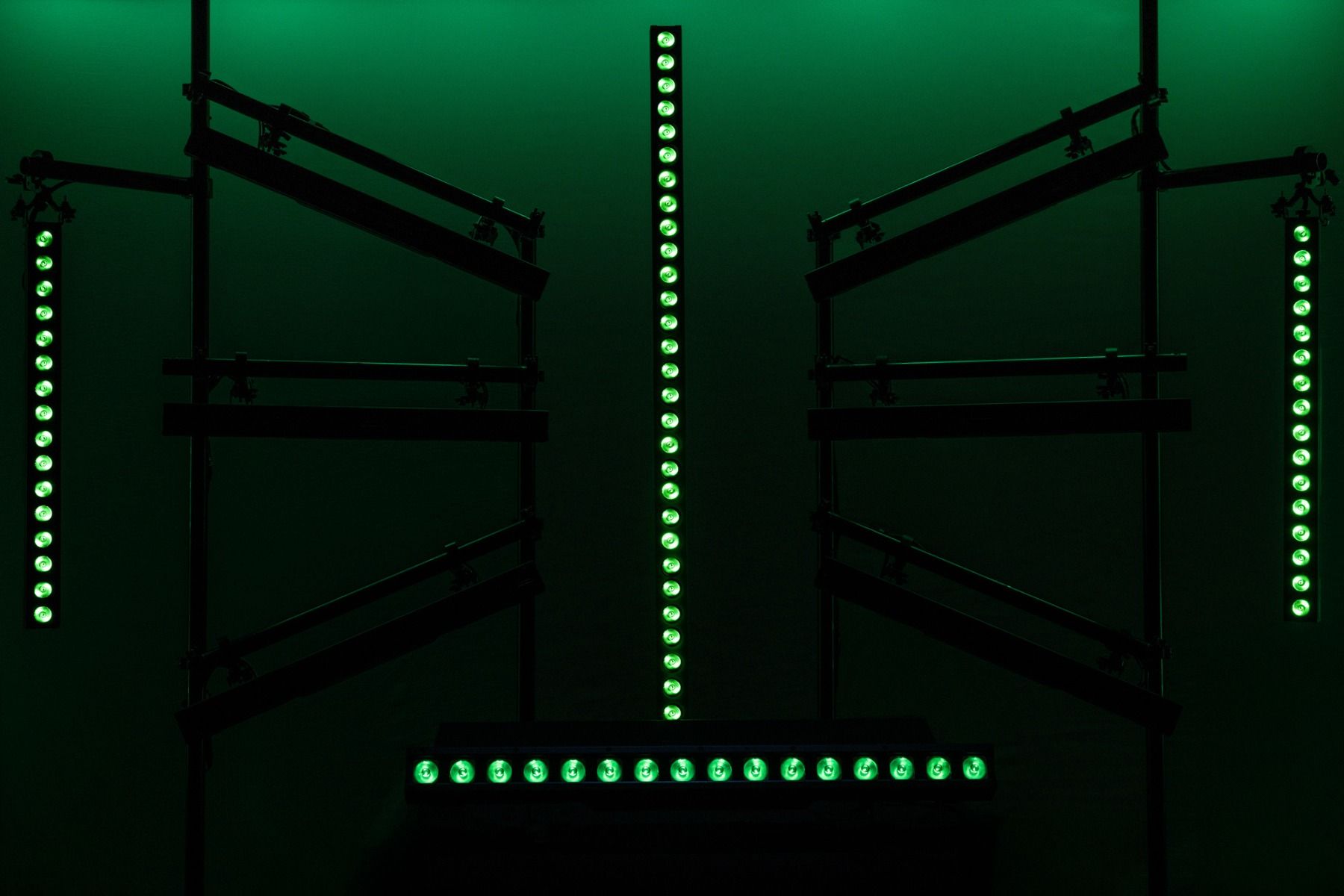

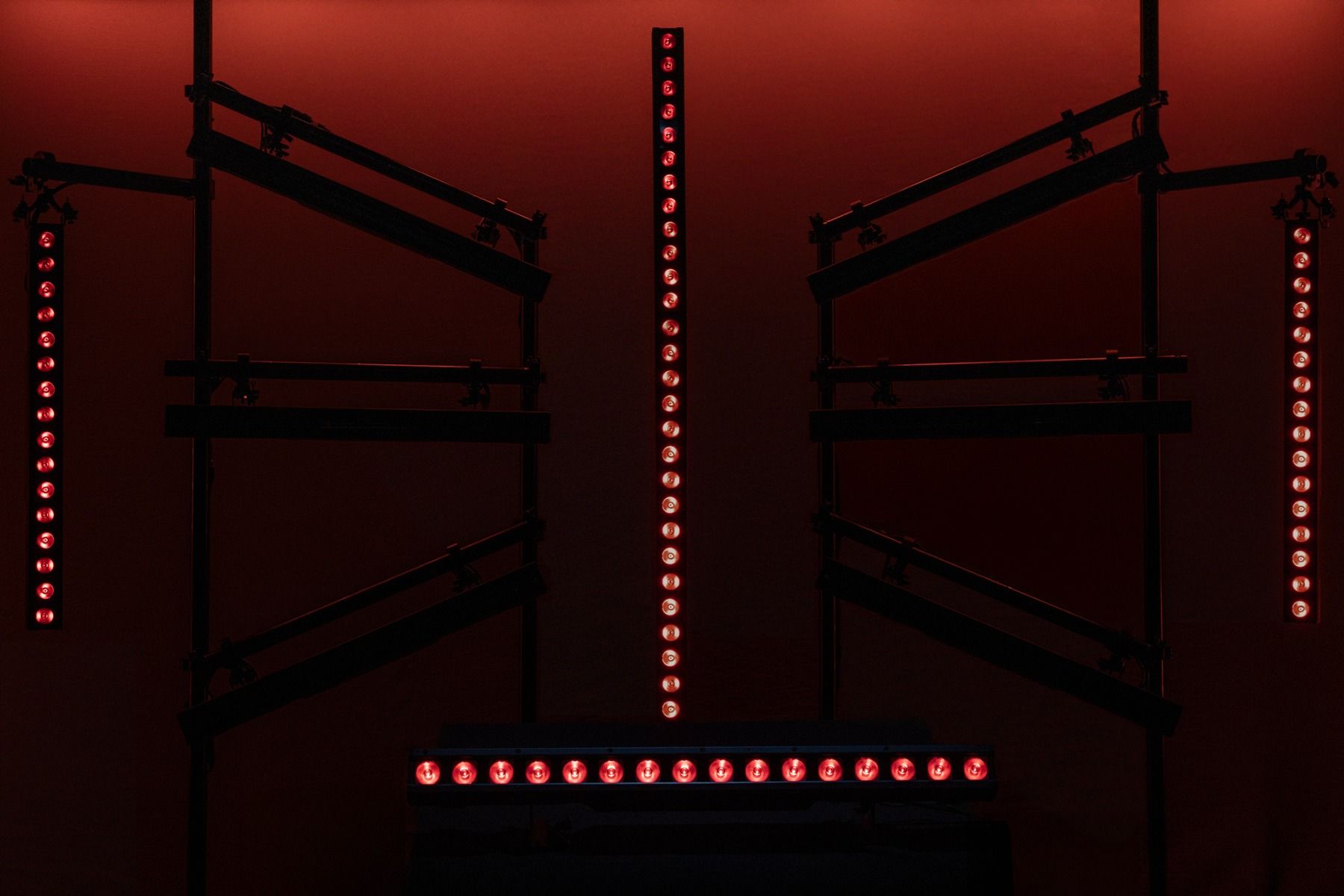

The quick lock system allows you to easily connect multiple units in horizontal or vertical direction, or suspend the LED bar horizontally under a truss.
For vertical mounting the optional Vertical Bracket for Showtec Spectra series is required.
With the optional Base Plate for Showtec Spectra series and one Vertical Bracket you can stack up to two Spectra fixtures vertically on the stage floor.
It is also possible to stack two LED bars or attach them to the Showtec Spectra Wash using the quick lock system.
Two quick lock brackets and a Power Pro True cable are included. Barndoors are available as an option.
Source
Light Source Type LED
Light Source Quantity 384
Light Source Power 0.5 W
LED Colour Type RGB
Refresh Rate 12400 Hz
LED Strobe Quantity 360
LED Strobe Power 1 W
Optical
Beam Angle (Horizontal) °
Beam Angle (Vertical) °
Control and Programming
Control Mode Built-in Program, DMX, Manual, Stand Alone
DMX Channels 3, 9, 21, 35, 49, 91
Protocols DMX, RDM

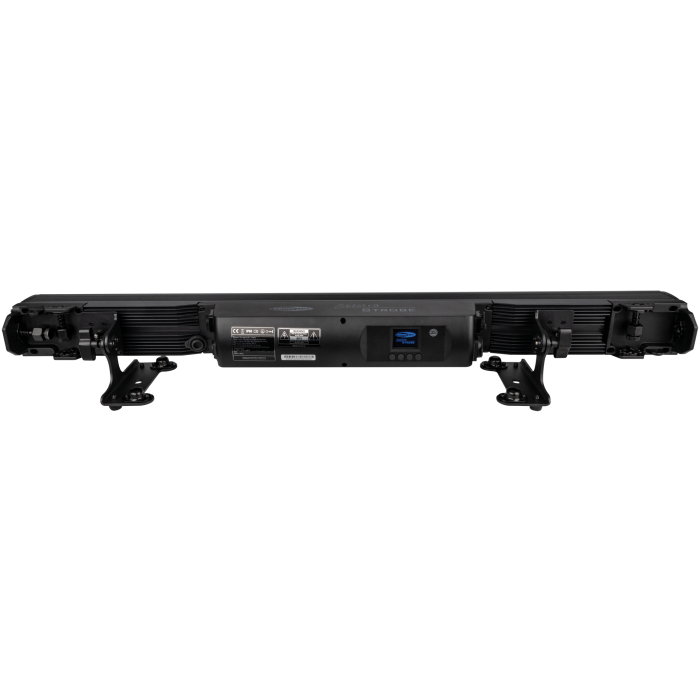

Display LCD
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 362 W
Power Connector In Power Pro True
Power Connector Out Power Pro True
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Mechanical Specifications
Length (mm) 1025 mm (40.354″)
Width (mm) 140 mm (5.512″)
Height (mm) 192 mm (7.559″)
Weight 9.5 kg (20.944 lb)
IP Rating IP65
Housing Aluminium die-cast
Colour Black
Product Properties
Cooling Passive
Rigging
Mounting Options Baseplate, Bracket, Quick-Lock
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Operating Temperature -5 °C (23 °F)
Included Items
Included Cables Power Pro True Cable
Included Rigging Quick-Lock Bracket
