Optional beam shapers (15°, 25°, 10° x 40°) and barndoors

Source

Light Source Type LED

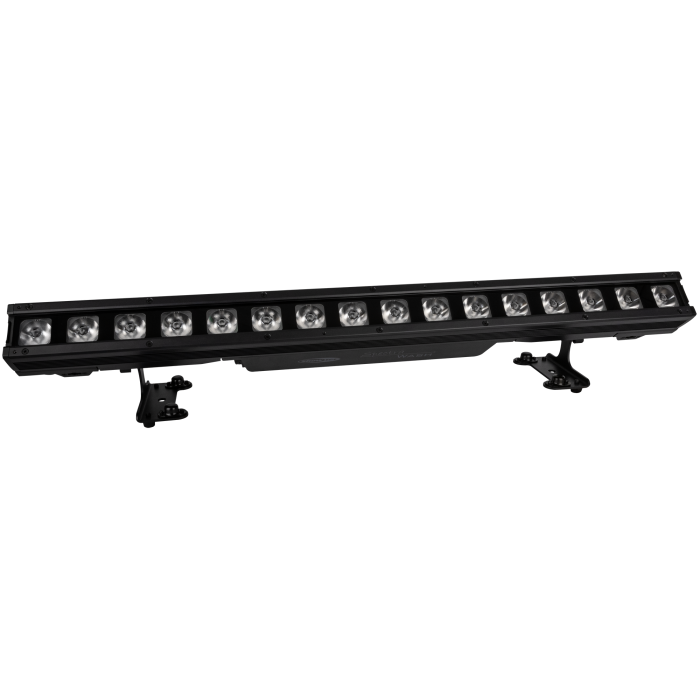

Light Source Quantity 16

Light Source Power 20 W

LED Colour Type RGBW

Refresh Rate 18000 Hz

Optical

Beam Angle (Horizontal) 12 °

Beam Angle (Vertical) 12 °

Control and Programming

Control Mode  Built-in Program, DMX, Manual, Stand Alone

DMX Channels 3, 4, 6, 11, 23, 32, 64, 71

Protocols DMX, RDM

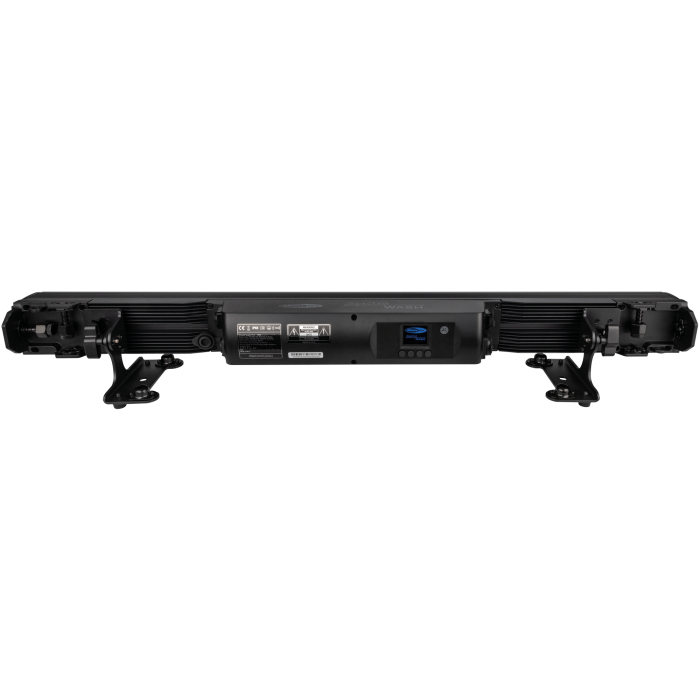

Display LCD

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply 100-240 V AC 50/60 Hz

Power Consumption  345 W

Power Connector In Power Pro True

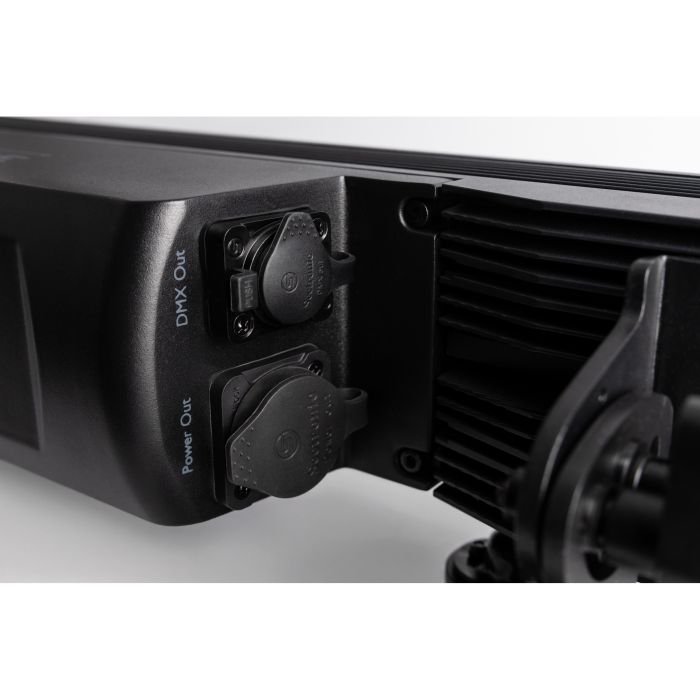

Power Connector Out  Power Pro True

DMX Connector In XLR 5P

DMX Connector Out XLR 5P

Mechanical Specifications

Length (mm) 1025 mm (40.354″)

Width (mm)  140 mm (5.512″)

Height (mm)  192 mm (7.559″)

Weight 9.8 kg (21.605 lb)

IP Rating  IP65

Housing Aluminium die-cast

Colour Black

Product Properties

Cooling  Passive

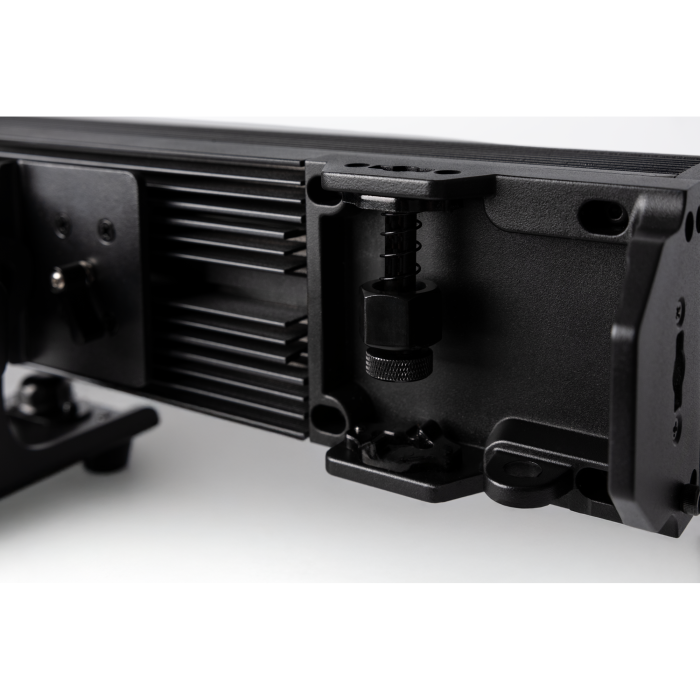

Rigging

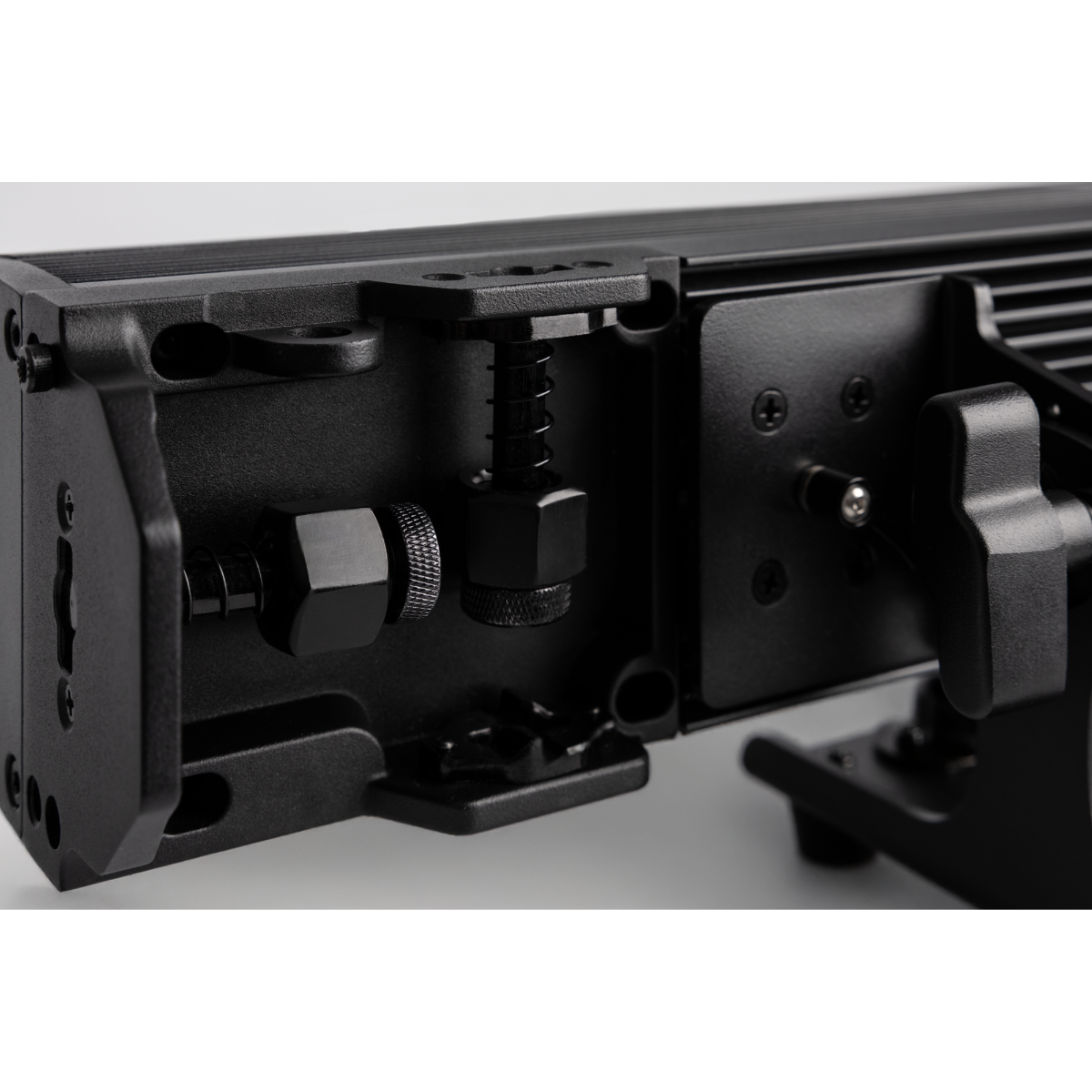

Mounting Options  Baseplate, Bracket, Quick-Lock

Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature  40 °C (104 °F)

Minimum Operating Temperature  -5 °C (23 °F)

Included Items

Included Cables Power Pro True Cable

Included Riggin Quick-Lock Bracket
