DMX/RDM, manual, master/slave and auto control modes

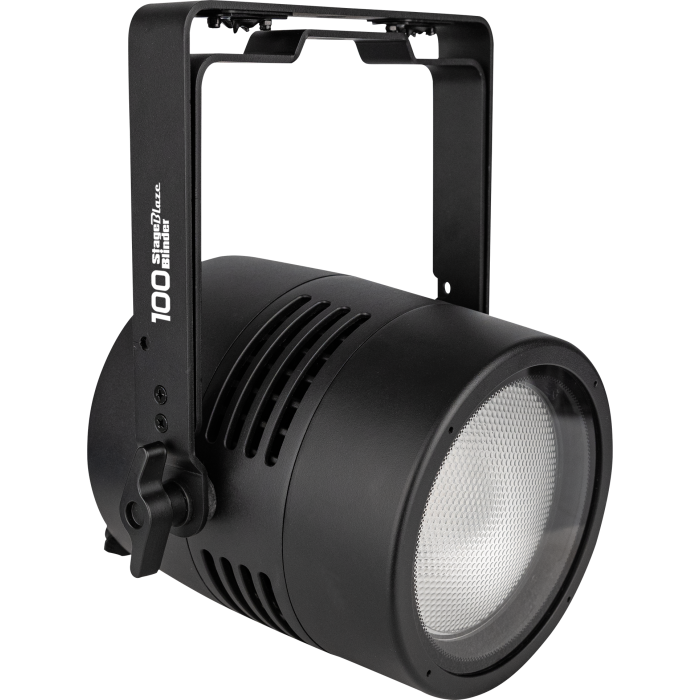

The Showtec Stage Blinder 100 Blaze is a powerful 100-watt LED blinder that uses a warm white COB LED of 3000 K with a CRI of >92.

It has uniquely integrated amber LEDs for mimicking a tungsten dim effect and RGB LEDs for a blaze effect.

It can be controlled via DMX/RDM, but also has manual, master/slave and auto modes.

The OLED display provides useful feedback on the settings.
It has silent convection cooling, making it suitable for noise-sensitive environments.

The robust aluminium housing is IP65-rated and comes with a mounting bracket.

Source

Light Source Type LED

Light Source Quantity 1

Light Source Power 100 W

LED Colour Type A, WW, RGB

Luminous Flux (Total) 3942 lm

CRI 92

Optical

Beam Angle (Horizontal) 45 °

Beam Angle (Vertical) 45 °

Control and Programming

Control Mode Auto, DMX, Manual, Master Slave, RDM

DMX Channels 1, 4, 5

Protocols DMX, RDM

Display OLED

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply 100-240 V AC 50/60 Hz

Power Consumption 100 W

Power Connector In Power Pro True

Power Connector Out Power Pro True

DMX Connector XLR 5P In/Out

DMX Connector In XLR 5P

DMX Connector Out XLR 5P

\Mechanical Specifications

Length (mm) 225 mm (8.858″)

Width (mm) 160 mm (6.299″)

Height (mm) 242 mm (9.528″)

Weight 4.1 kg (9.039 lb)

IP Rating IP65

Material Aluminium

Housing Aluminium die-cast

Colour Black

Product Properties

Cooling Forced Convection

Rigging

Mounting Options Clamp, Quick-Lock

Thermal Specifications

Maximum Ambient Temperature 40 °C (104 °F)

Minimum Operating Temperature -5 °C (23 °F)

Included Items

Included Cables Power Pro True Cable

Included Rigging Quick-Lock Bracket
