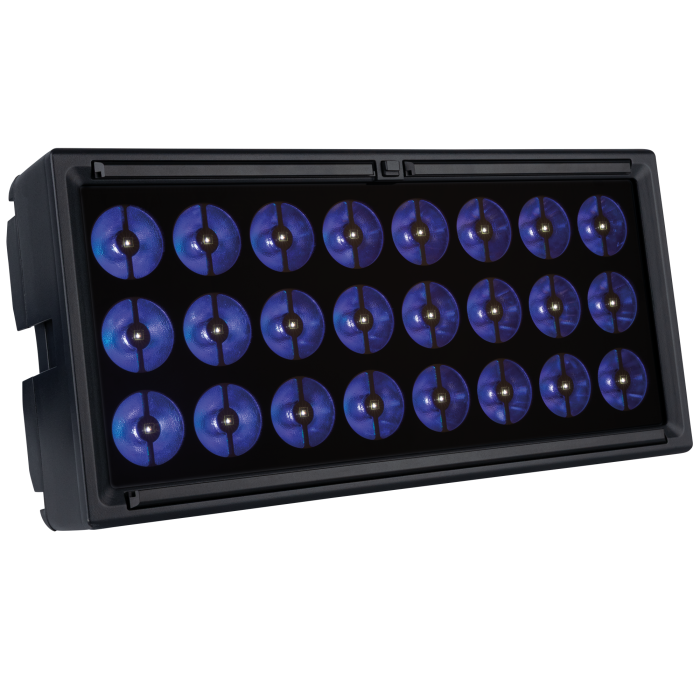

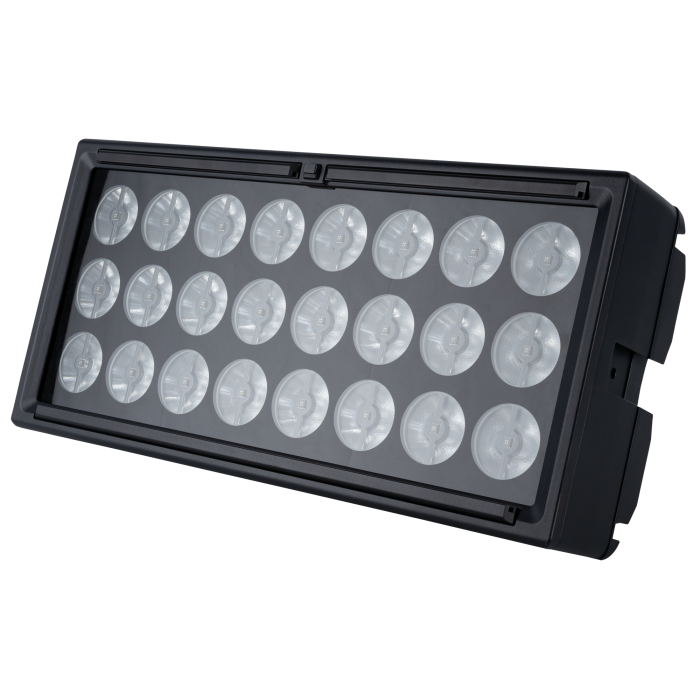

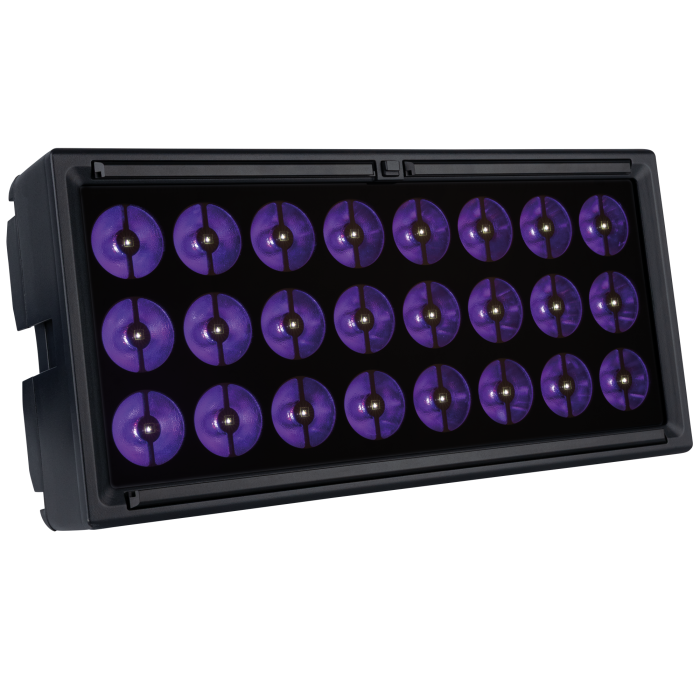

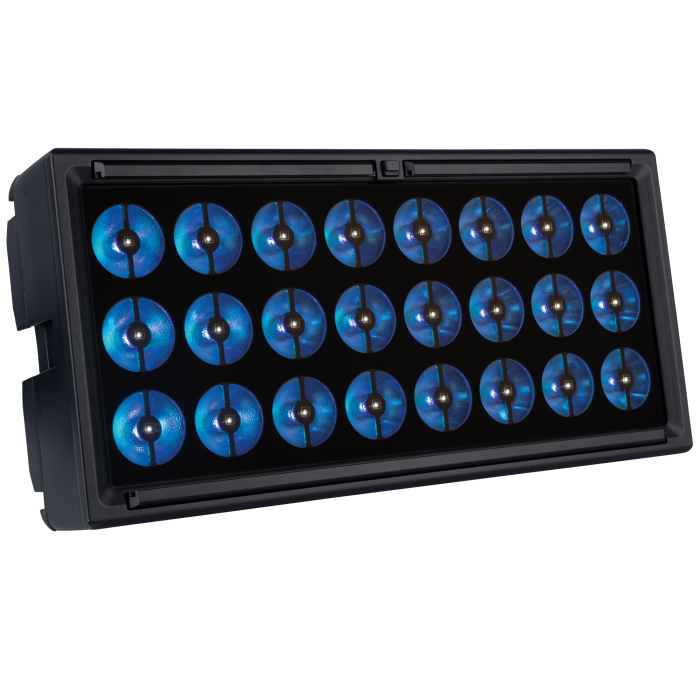

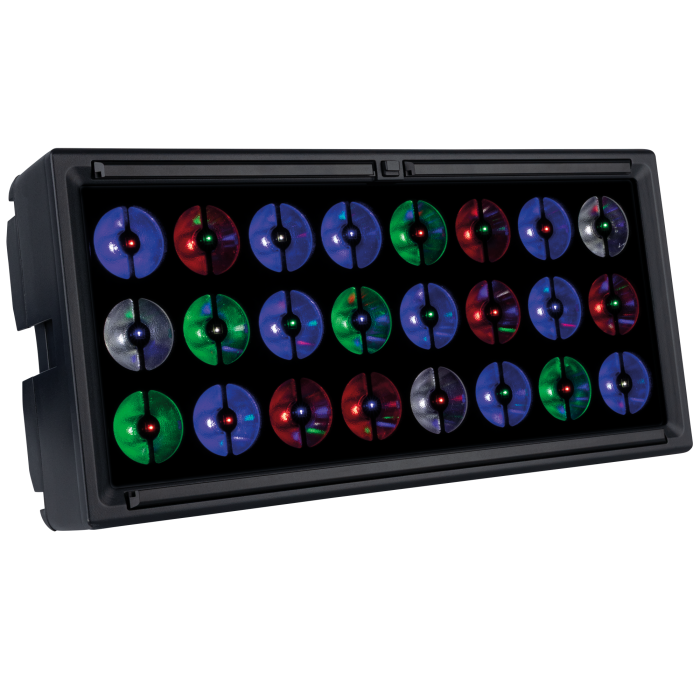

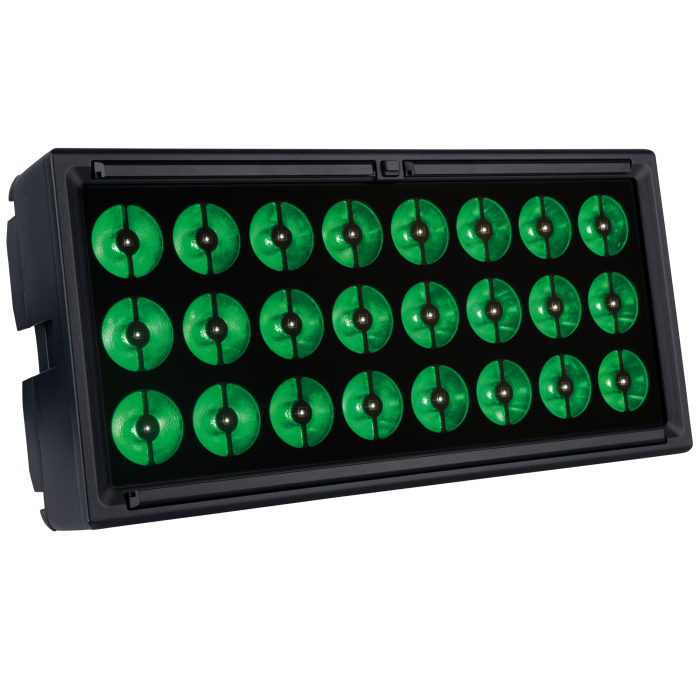

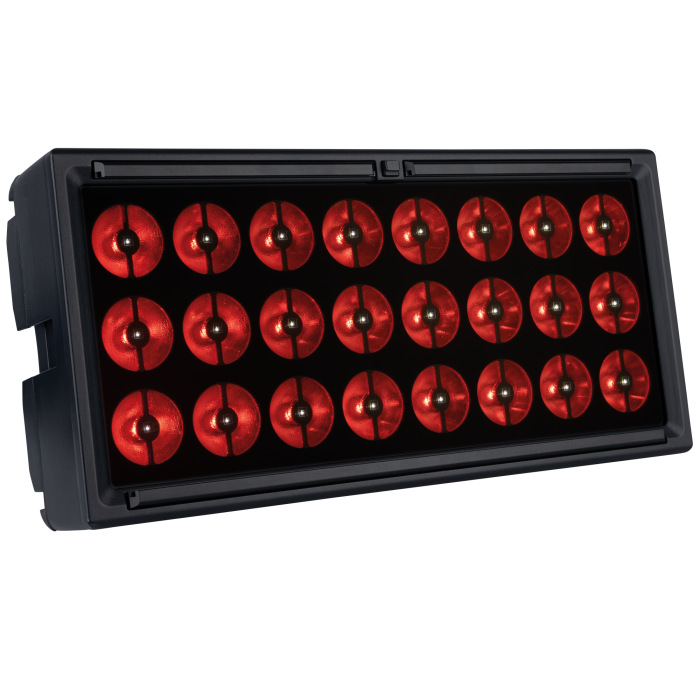

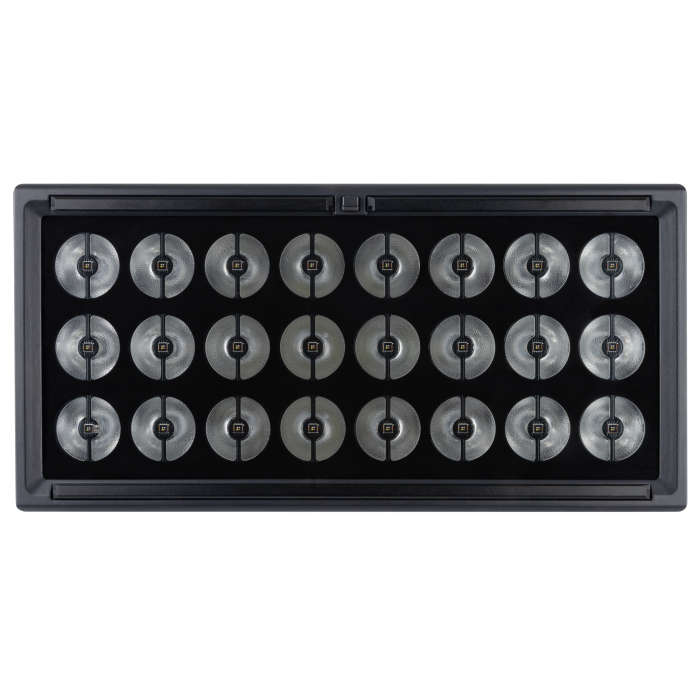

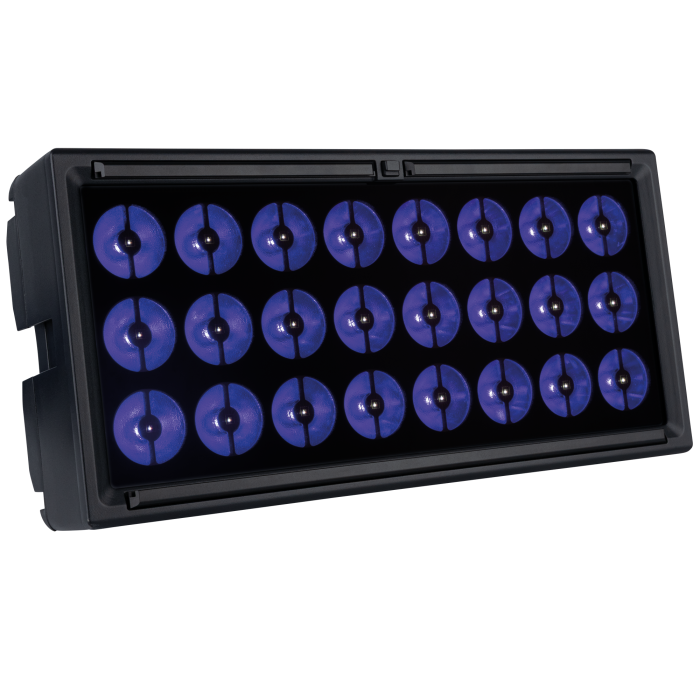

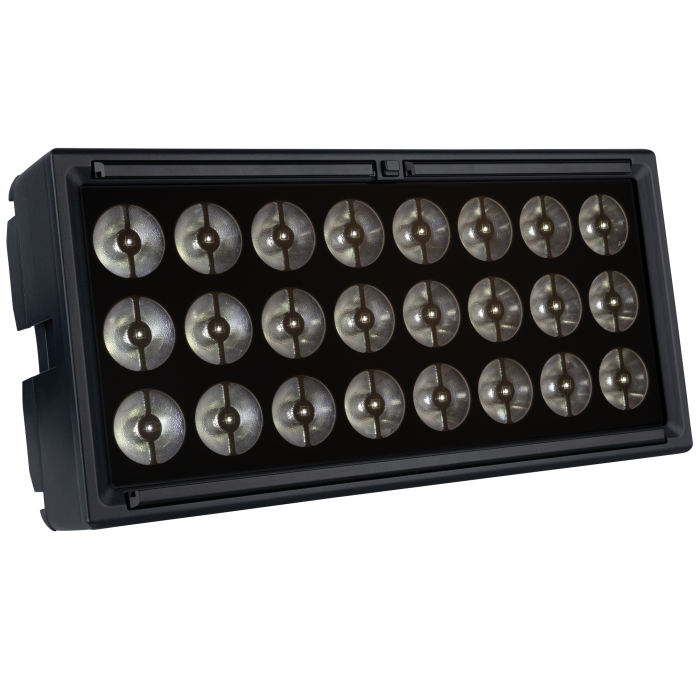

The Titan Matrix FX is a matrix light with fully controllable pixels. It features 3 rows of 8 RGBW LEDs (24 in all) that are covered with a lens and in front of each lens is a 6 W RGBW LEDs (another 24). This combination makes it possible to create bold, colourful. geometric patterns, making the Titan Matrix FX an excellent choice for live events, studios and more. With an IP65 rating, it can also be used outdoors.

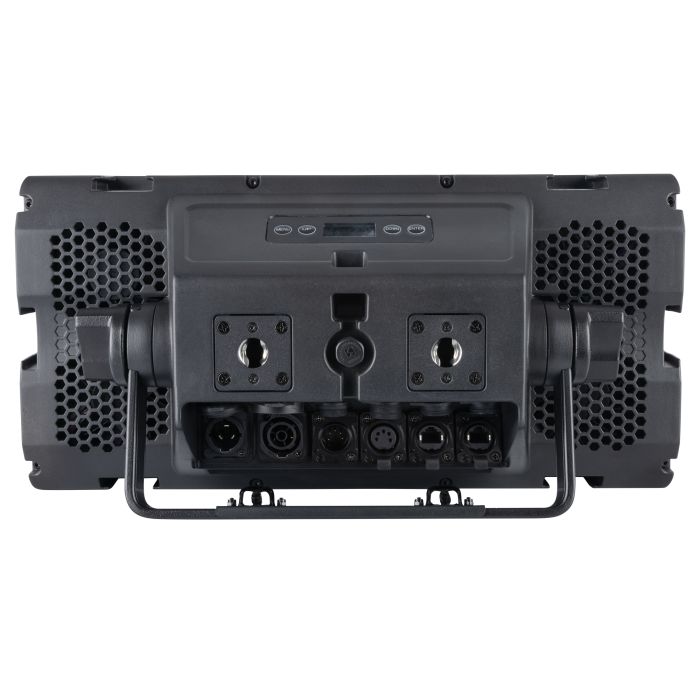

For ultimate flexibility, the fixture can be controlled with DMX (incl. RDM), Art-Net, sACN or manually. Connection options include 5-pin XLR, etherCON and Power Pro True inputs and outputs. Unique horizontal and vertical setups with multiple fixtures can be built quickly and easily using the optional Titan Connection Blocks.

Specifications

Source
Light Source Type LED
Light Source Quantity 48
Light Source Power 40W
LED Color Type RGBW
Luminous Flux (Total) 8219 lm
Luminous Flux (Green) 8846 lm
Luminous Flux (Blue) 3619 lm
Luminous Flux (White) 2079 lm

Control and Programming
Control Mode Art-Net, DMX, Manual, RDM, sACN
Protocols Art-Net, DMX, RDM, sACN Dim Curve
Linear, Square, I-Square, S-Curve Dynamic Effects
Dimmer 0-100%
Strobe 0-25 Hz

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 700W
Power Connector In Power Pro True
Power Connector Out Power Pro True
DMX Connector XLR 5P In/Out
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Data Connector etherCON In/Out
Data Connector In etherCON
Data Connector Out etherCON

Mechanical Specifications
Height (mm) 200mm (7.874″)
Width (mm) 407mm (16.024″)
Depth (mm) 169mm (6.654″)
Weight 8.8 kg (19,401 lb)
IP Rating IP65
Housing Aluminum die cast
Color Black
Product Properties
Cooling Forced Convection

Rigging

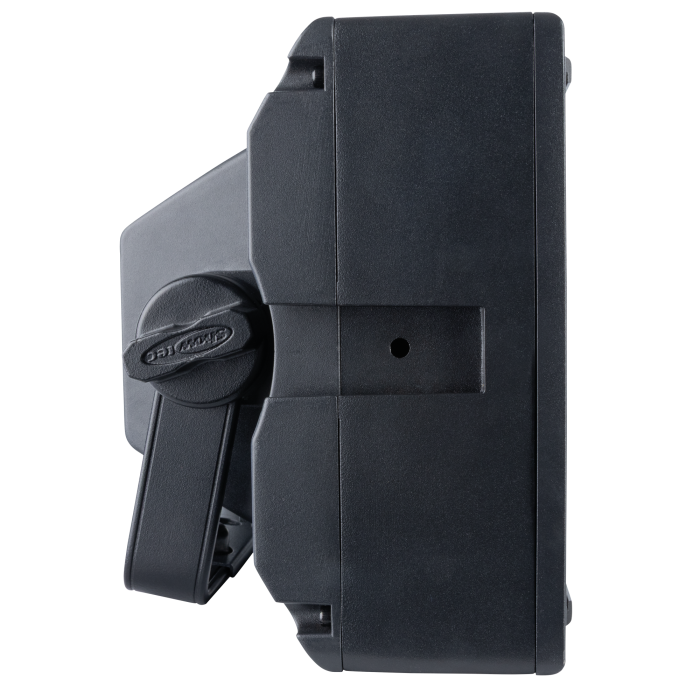

Mounting Options Clamp, Quick Lock
Safety Attachment Yes

Thermal Specifications
Maximum Ambient Temperature 40°C (104°F)

Included Items
Included Cables Power Pro True Cable

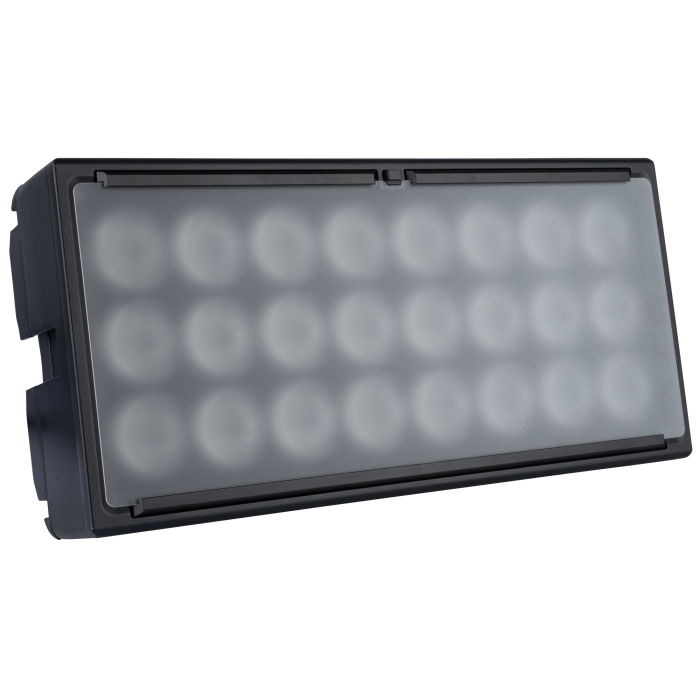

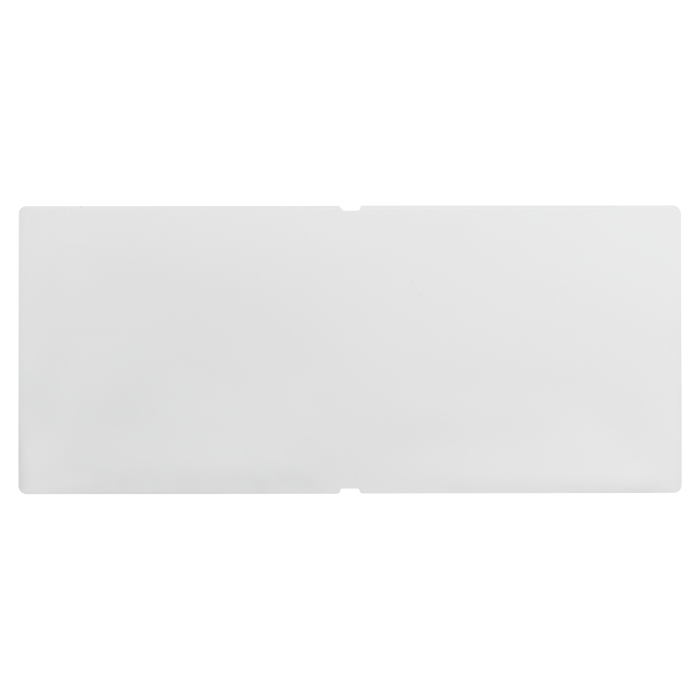

Included AccessoriesFrost filter

Product Compliance
Energy efficiency class T/B/D
