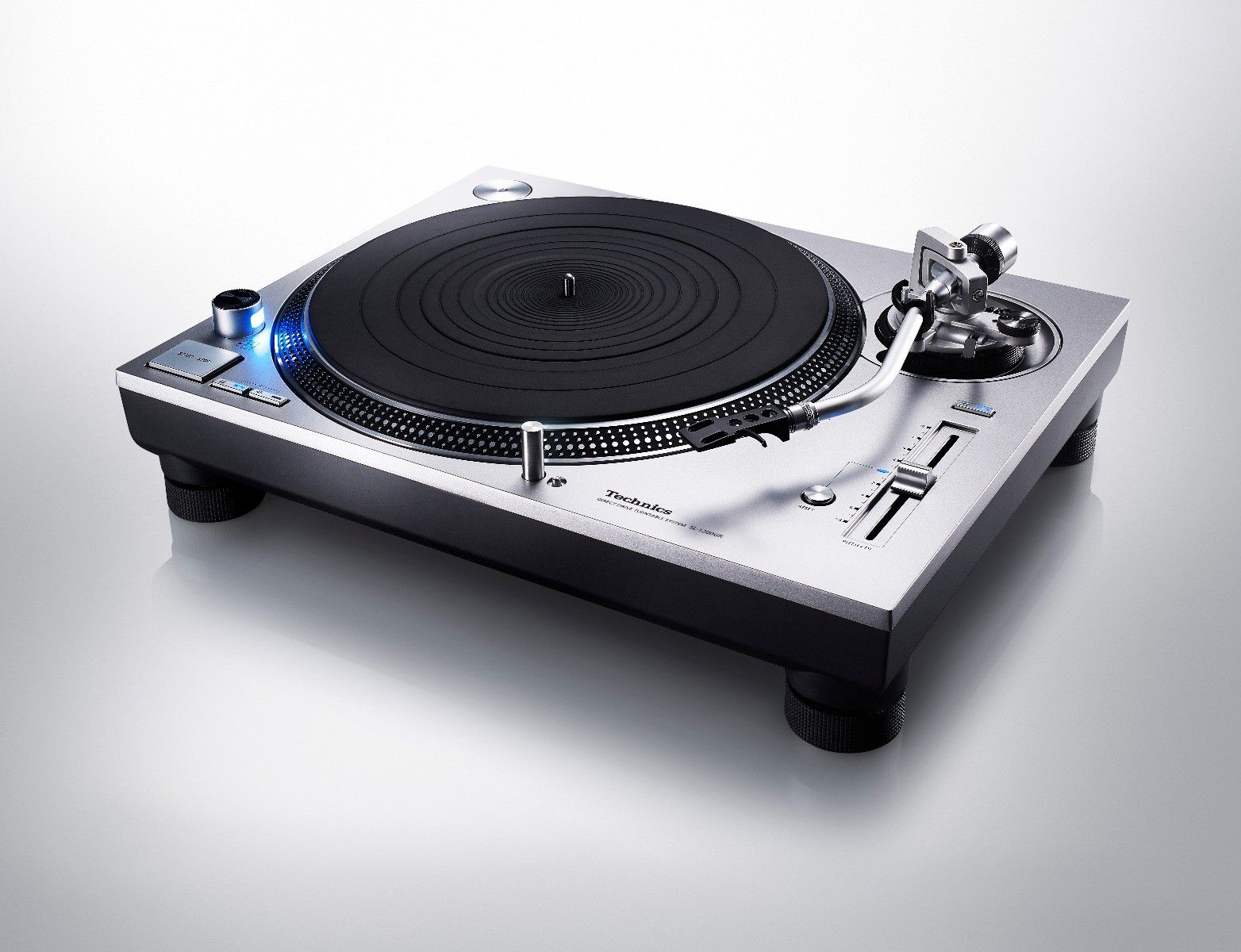

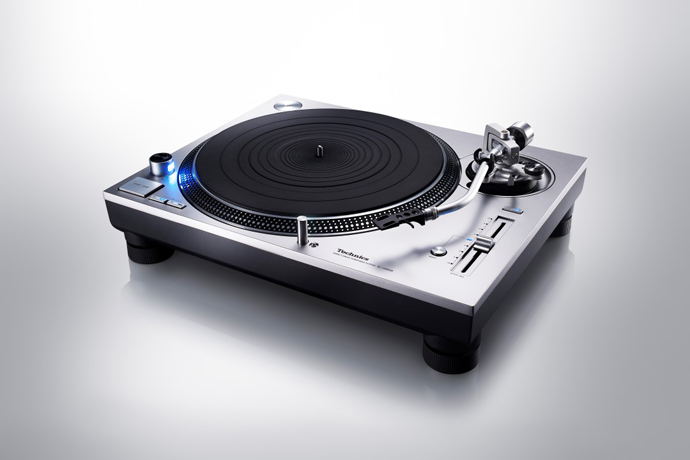

Turntable section

Type

Direct Drive Manual Turntable

Turntable Speeds

33-1/3, 45 and 78 r/min

Adjust Range

±8 %, ±16 %

Starting Torque

2.2 kg-cm

Build-up Characteristics

0.7 s. from Standstill to 33-1/3 r/min

Wow And Flutter

0.025 % W.R.M.S.

Rumble

78 dB (IEC 98A weighted)

Turntable Platter

Aluminium diecast
Diameter : 332 mm
Weight : Approx. 2.5 kg (Including rubber sheet)

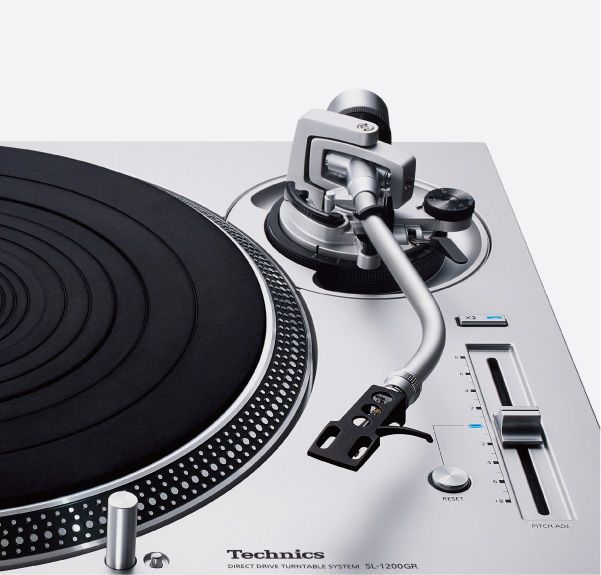

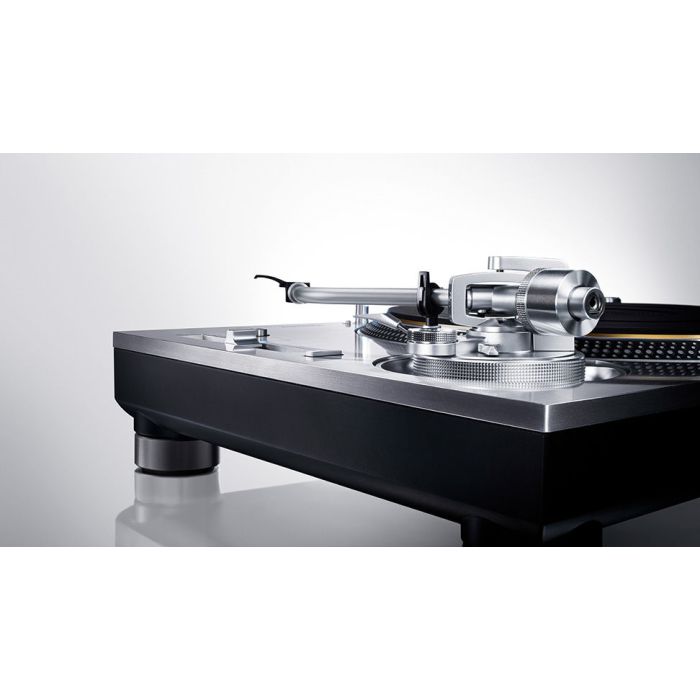

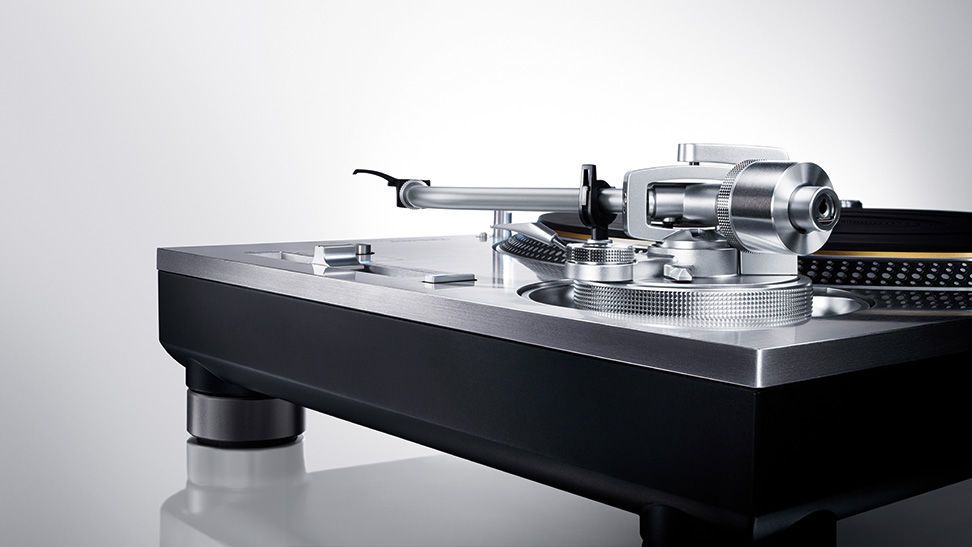

Tonearm Section

Type

Universal Static Balance

Effective Length

230 mm

Overhang

15 mm

Tracking Error Angle

Within 2° 32' (at the outer groove of 30 cm record)
Within 0° 32' (at the inner groove of 30 cm record)

Offset Angle

22°

Arm-height Adjustment Range

0 - 6 mm

Stylus Pressure Adjustment Range

0 - 4 g (Direct Reading)

Head Shell Weight

Approx. 7.6 g

Applicable Cartridge Weight Range

(without auxiliary weight)
5.6 - 12.0 g
14.3 - 20.7 g (including head shell)
(with auxiliary weight)
10.0 - 16.4 g
18.7 - 25.1 g (including head shell)

Cartridge Mounting Dimension

JIS 12.7 mm (1/2") interval

Head Shell Terminal Lug

1.2 mmφ 4-pin terminal lug

Terminals

Audio Output

PHONO (Pin Jack) x 1
EARTH TERMINAL x 1

General

Power Supply

AC 110 - 240 V, 50 / 60 Hz

Power Consumption

11 W Approx.
0.2 W (Standby)

Dimensions (W x H x D)

453 x 173 x 372 mm

Weight

Approx. 11.5 kg

Accessories

Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
